Temperature
Sensors

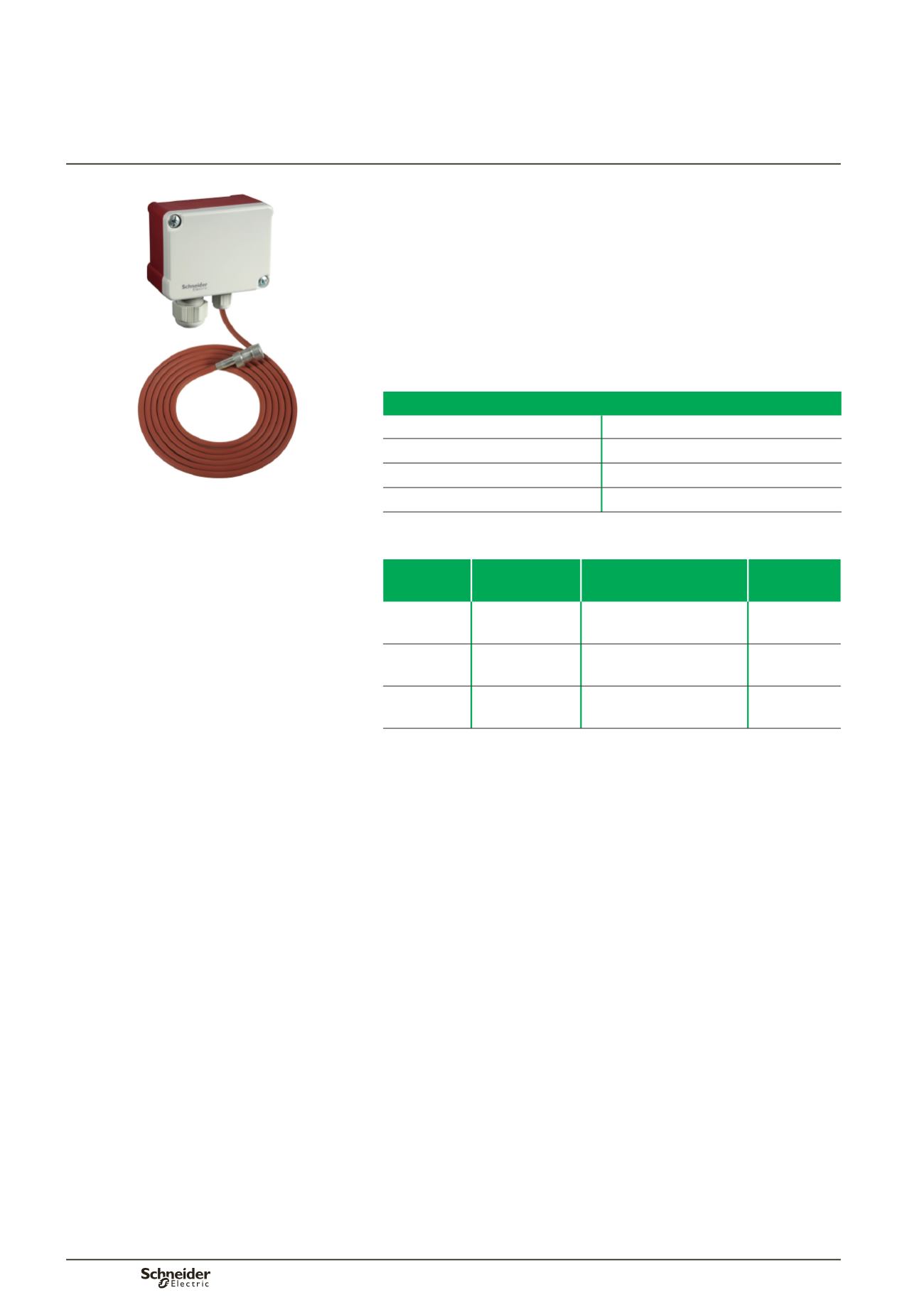

STC300
Strap On Temperature
Transmitters
STC300
STC300 is an electronic pipe contact temperature transmitter that converts the
temperature measured into an electronic current signal 4-20 mA. The transmitter
is delivered as a complete unit, comprising a pipe clamp, the sensing element and
an amplifier, mounted in a housing. The sensor and amplifier are encapsulated in
separate units, to protect the electronics from excessive heat. A 2m cable connects
the two units.
The transmitter element is intended for external mounting directly on pipes, (max
diameter 100 mm) e.g. flow and return water pipes. The transmitter is connected
with a 2-wire cable, which serves both as power supply and for signal transmission.
The reading of the measured signal is done over an external load resistance.
Specifications
Output
2-Wire, 4-20 mA
Range
0/100, 0/160, -50/+50 °C
Accuracy
±0.3 °C at 25 °C
Supply
Min. 15Vdc, Max. 36Vdc
Part
number
Model
number
Description
System
006920041 STC300 0/100
Contact Temperature
Sensor STC300 0/100
All
006920061 STC300 0/160
Contact Temperature
Sensor STC300 0/160
All
006920021 STC300 -50/50
Contact Temperature
Sensor STC300 -50/50
All
