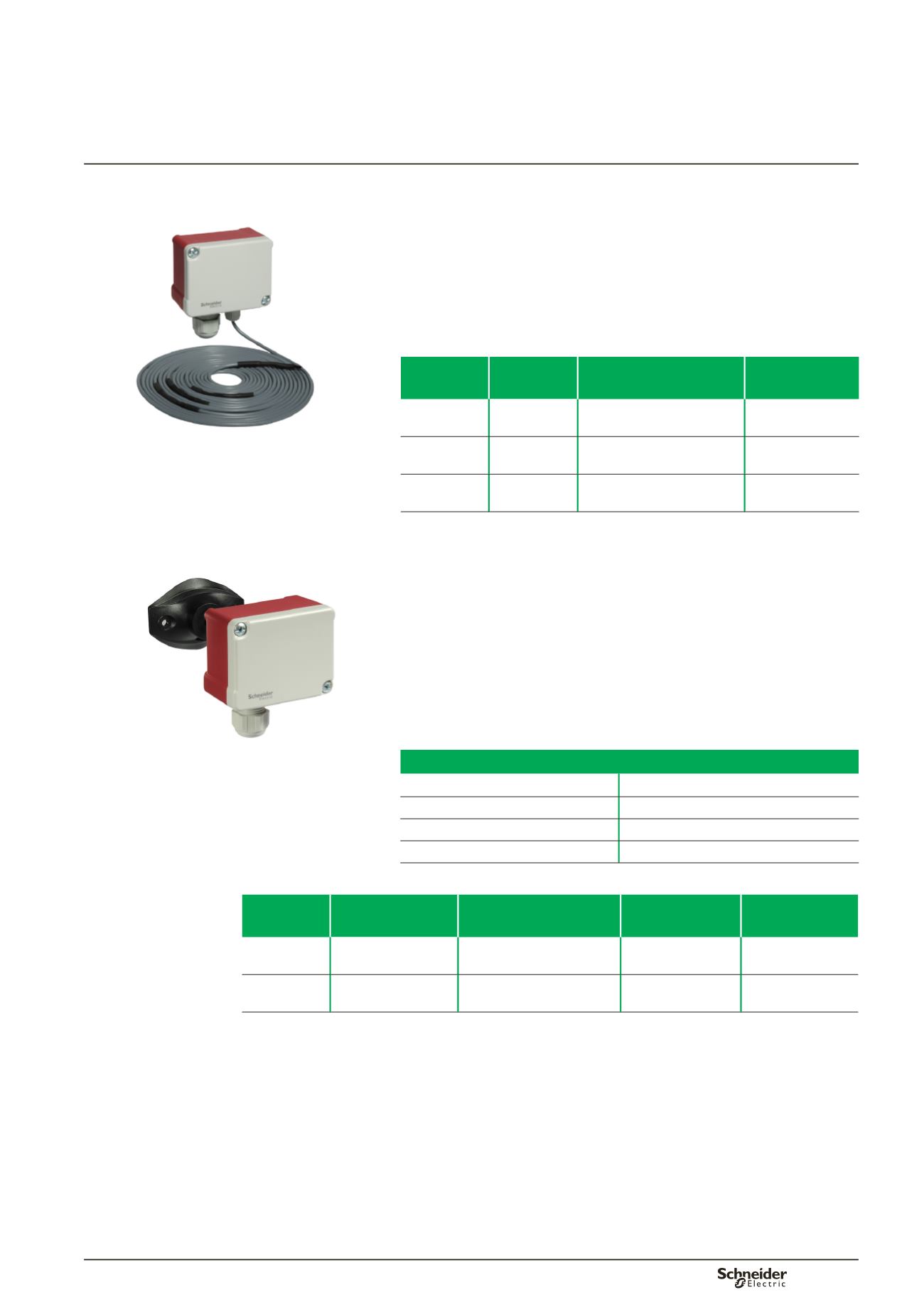

CAT-SENSORS-EU.BU.N.EN.2.2012.0.01.CC
13
Duct Temperature
Sensors
STD190, 290, 591, 300
Duct Temperature
Averaging Sensors
STD190, 290, 591
The STD190, STD290, and STD591 sensors are delivered as complete units,
comprising a junction box and a cable on which four sensors are located at 1 metre
(3.3 ft.) intervals. The distance from the first sensor to the junction box is 2 metres (6.6 ft.).
The sensors contain four thermistors and is a mean value temperature sensor.
The sensor is used for temperature measurement in air ducts. It is intended for
mounting on to a grid or on wires suspended across a duct.
Accuracy See Appendix A: Tables D, E
STD300
STD300 is an electronic temperature transmitter that converts the temperature
measured into an electric current signal 4-20 mA. The transmitter is delivered as
a complete unit, comprising a stainless steel immersion well, the sensing element
and an amplifier, mounted in a housing.
The transmitter is intended for immersion installation and is used for temperature
measurement in air ducts. The transmitter shall be connected with a 2-wire cable,
which serves both as power supply and for signal transmission.
Part
number
Model number Description
Probe length
(mm)
System
006920141 STD300-300 0/100 Duct Temperature Sensor
STD300-300 0/100
300
All
006920121 STD300-300-50/50 Duct Temperature Sensor
STD300-300-50/50
300
All
Part
number
Model
number
Description
System
5123060010 STD190
Average Duct Temperature
Sensor STD190
TAC Vista
TAC Xenta
5123060020 STD290
Average Duct Temperature
Sensor STD290
TAC I/NET
5123086010 STD591
Average Duct Temperature
Sensor STD591
Andover
Continuum
Specifications
Output
2-Wire, 4-20 mA
Range
-50 to +50 °C; 0 to 100 °C
Accuracy
±0.4 % of range
Supply
Min. 15Vdc, Max. 36Vdc
