Temperature
Sensors

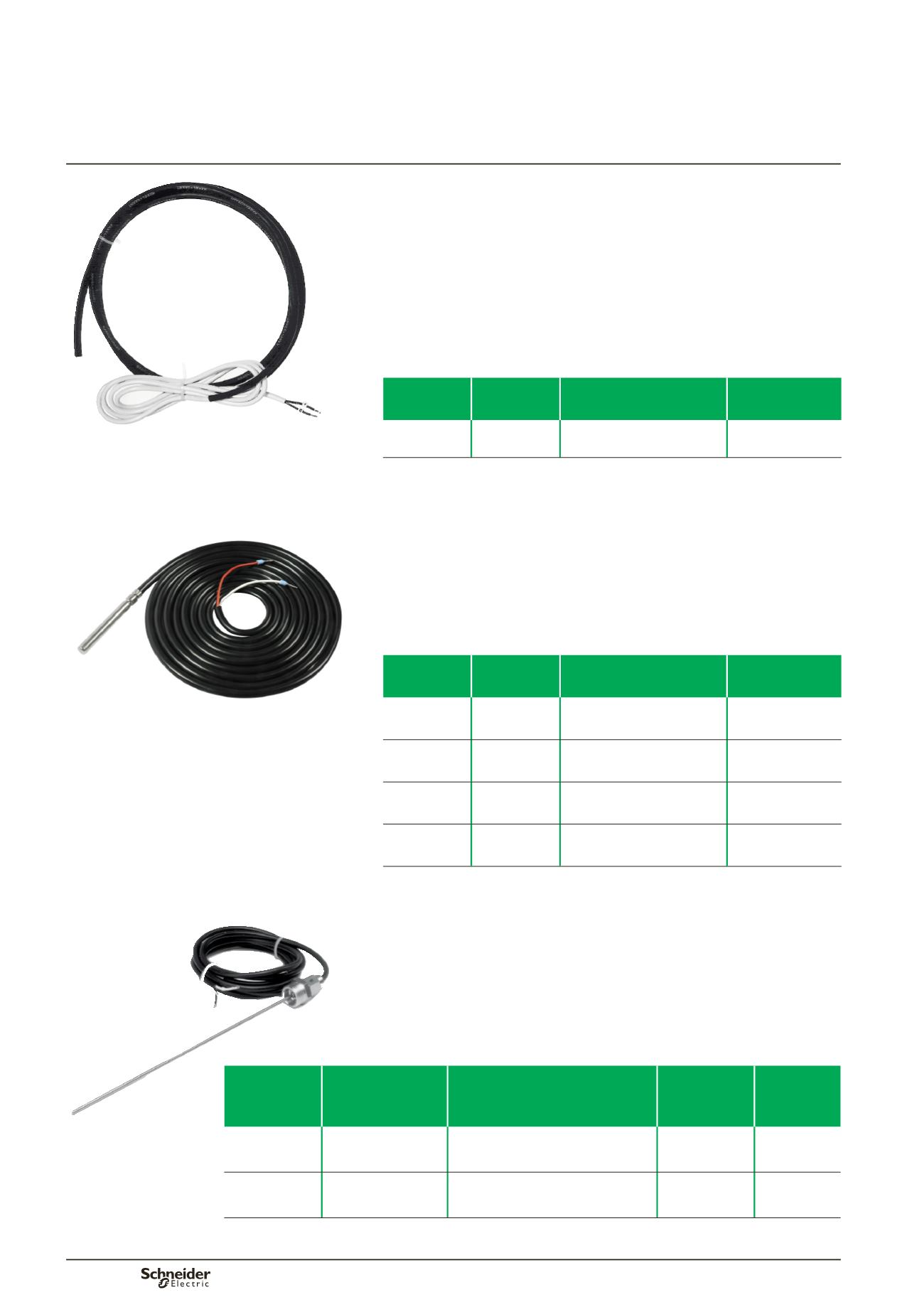

STX140, 120, 520, 122
Immersion Temperature
Sensors
STX140
The STX140 is made of polythene tube Ø 10mm and is primarily intended for
laying underfloor. Four thermistors are evenly spaced along the length of the tube.
The sensor is delivered with a connection cable of two metres.
When laying underground, the thermistor cable should be placed in pipes with a
minimum inside diameter of 12mm.
Accuracy See Appendix A: Table D
STX120, 520
The sensor, which is made of stainless steel, is delivered with a 2m or 4m cable
PVC sheathed overall. STX120 is intended for measuring water temperature in
heating applications, mounted in a well/pocket.
Accuracy See Appendix A: Tables A, D
STX122
The STX122 is primarily intended for pipe mounting without a separate pocket in
heating coils. The insert pipe is stainless steel. The sensor is delivered with a 2m
connecting cable, and has a R1/4” (DN 8) male thread fixing. As standard the sensor is
delivered with a separate R1/2” (DN 15) male thread reducing bush.
Accuracy See Appendix A: Table A
Part
number
Model
number
Description
System
5123310000 STX140
Ground Temperature
Sensor STX140
TAC Vista
TAC Xenta
Part
number
Model
number
Description
System
5123302000 STX120-200
Immersion Temperature
Sensor STX120-200
TAC Vista
TAC Xenta
5123304000 STX120-400
Immersion Temperature
Sensor STX120-400
TAC Vista
TAC Xenta
5123320000 STX520-200
Immersion Temperature
Sensor STX520-200
Andover
Continuum
5123322000 STX520-400
Immersion Temperature
Sensor STX520-400
Andover
Continuum
Part
number
Model
number
Description
Probe
length
(mm)
System
5123306000 STX122-250
Coil Temperature Sensor
STX122-250
250
TAC Vista
TAC Xenta
5123308000 STX122-400
Coil Temperature Sensor
STX122-400
400
TAC Vista
TAC Xenta
