Temperature
Sensors

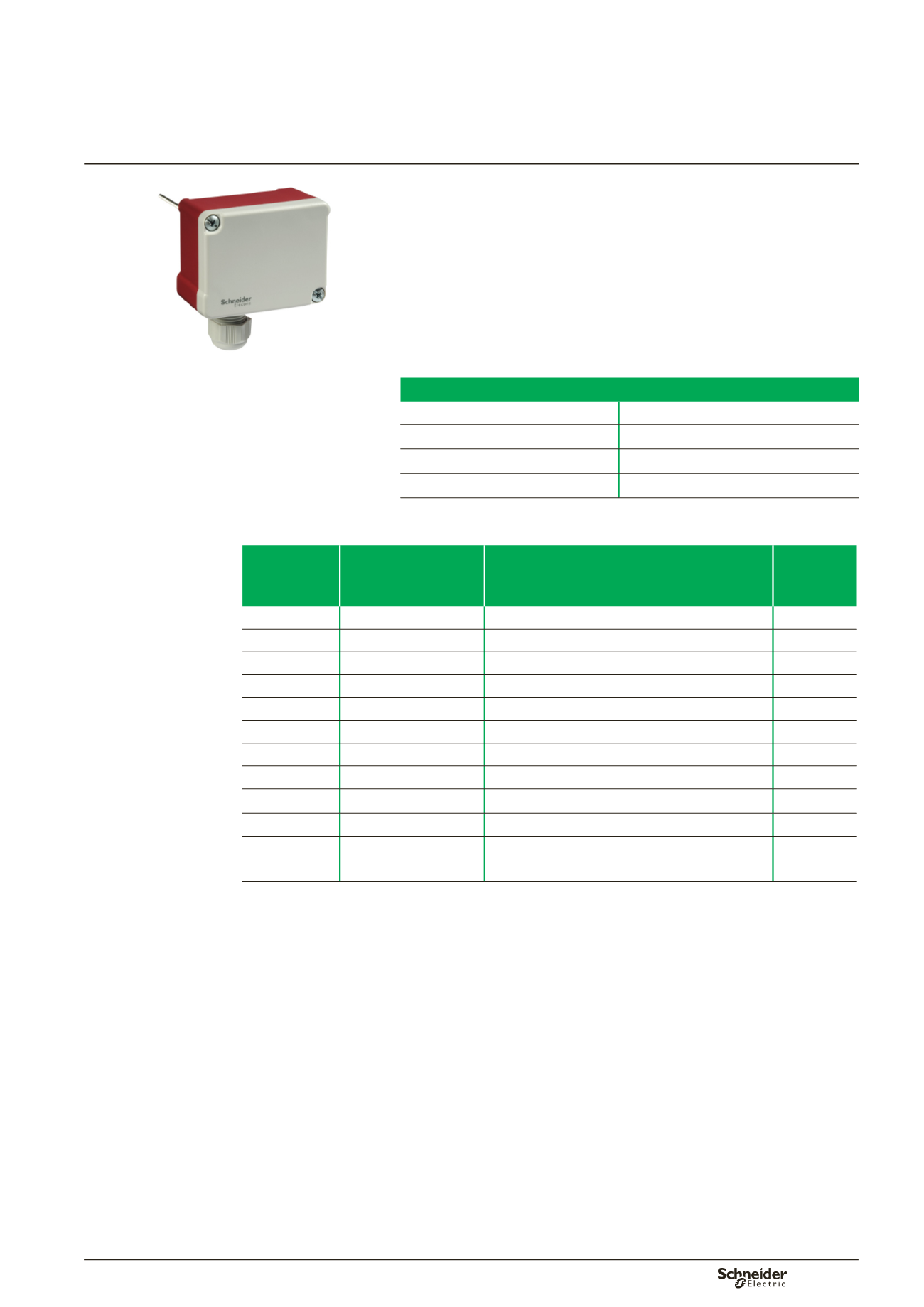

STP300
Immersion Temperature
Transmitters for Pockets
STP300
The STP300 is an electronic immersion temperature transmitter that converts a
measured temperature into an electronic current signal 4-20 mA. The STP300 is
designed for immersion mounting in pipe systems with a separate pocket (well).
The pocket is sealed, making it easy to replace the transmitter if necessary.
For a new installation the pocket must be ordered separately. The transmitter
is intended for measurement of high and low temperatures. The transmitter
is connected with a 2-wire cable, which serves both as power supply and
for signal transmission. The reading of the measured signal is done over an
external load resistance.
Part
number
Model
number
Description
Probe
length
(mm)
006920241 STP300-100 0/100 Pipe Temperature Sensor STP300-100 0/100
100
006920261 STP300-100 0/160 Pipe Temperature Sensor STP300-100 0/160
100
006920221 STP300-100 -50/50 Pipe Temperature Sensor STP300-100 -50/50
100
006920301 STP300-200 0/100 Pipe Temperature Sensor STP300-200 0/100
200
006920321 STP300-200 0/160 Pipe Temperature Sensor STP300-200 0/160
200
006920281 STP300-200 -50/50 Pipe Temperature Sensor STP300-200 -50/50
200
006920361 STP300-300 0/100 Pipe Temperature Sensor STP300-300 0/100
300
006920381 STP300-300 0/160 Pipe Temperature Sensor STP300-300 0/160
300
006920341 STP300-300 -50/50 Pipe Temperature Sensor STP300-300 -50/50
300
006920421 STP300-400 0/100 Pipe Temperature Sensor STP300-400 0/100
400
006920441 STP300-400 0/160 Pipe Temperature Sensor STP300-400 0/160
400
006920401 STP300-400 -50/50 Pipe Temperature Sensor STP300-400 -50/50
400
Specifications
Output
2-Wire, 4-20 mA
Range
0/100, 0/160, -50/+50 °C
Accuracy
±0.4 % of range
Supply
Min. 15Vdc, Max. 36Vdc
