Humidity
Transmitters

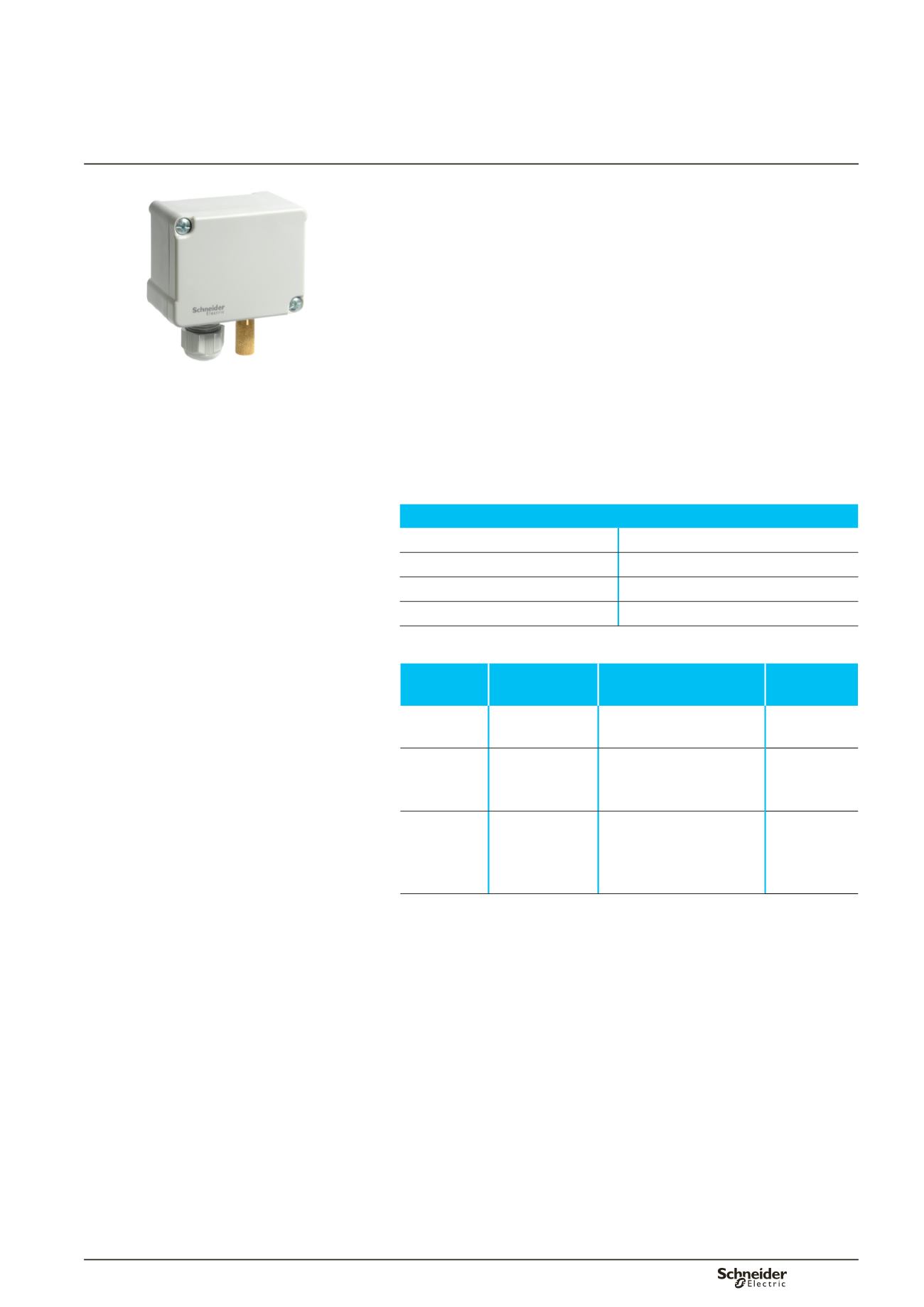

SHO100
Outdoor Humidity
Transmitter
SHO100
The SHD100 is an active sensor, which measures relative humidity (%RH) and
converts the measurement into an electric current 4-20 mA or a voltage level
0 10 V. SHD100 is intended for immersion installation and is used for relative
humidity measurement in air ducts. The transmitter is delivered as a complete
unit, comprising an aluminium mounting flange with the sensing element, and an
amplifier mounted in a separate housing.
The following options are available:
n
SHD100-T includes selectable temperature sensors NTC 1.8 kΩ and NTC
10 kΩ for I/Net products.
n
SHD100-T5 includes selectable temperature sensors NTC 1.8 kΩ and NTC
10 kΩ for Continuum products.
n
SHD100-T6 includes selectable temperature sensors NTC 1.8 kΩ and NTC
5.02 kΩ for Satchwell products.
The sensor has negligible hysteresis and is insensitive to dust as well as a wide
range of chemicals. The housing accommodates a 20mm conduit. A conduit
gland nut is supplied with the unit.
Part
number
Model
number
Description
System
006902361 SHO100
Outdoor Humidity Sensor
SHO100
All
(%RH only)
006902371 SHO100-T
Outdoor Humidity +
Temperature SHO100-T
TAC I/NET
TAC Vista
TAC Xenta
006902401 SHO101-T5
Outdoor Humidity +
Temperature SHO101-T5
Andover
Continuum
TAC Vista
TAC Xenta
Specifications
Output
Selectable 4-20 mA, 0-10 V
Range
0-95% RH
Accuracy
±2%
Supply
24 Vac / 15-36 Vdc Power
