Living Space
Temperature Sensors
STR800 Series Living Space
Temperature Sensors

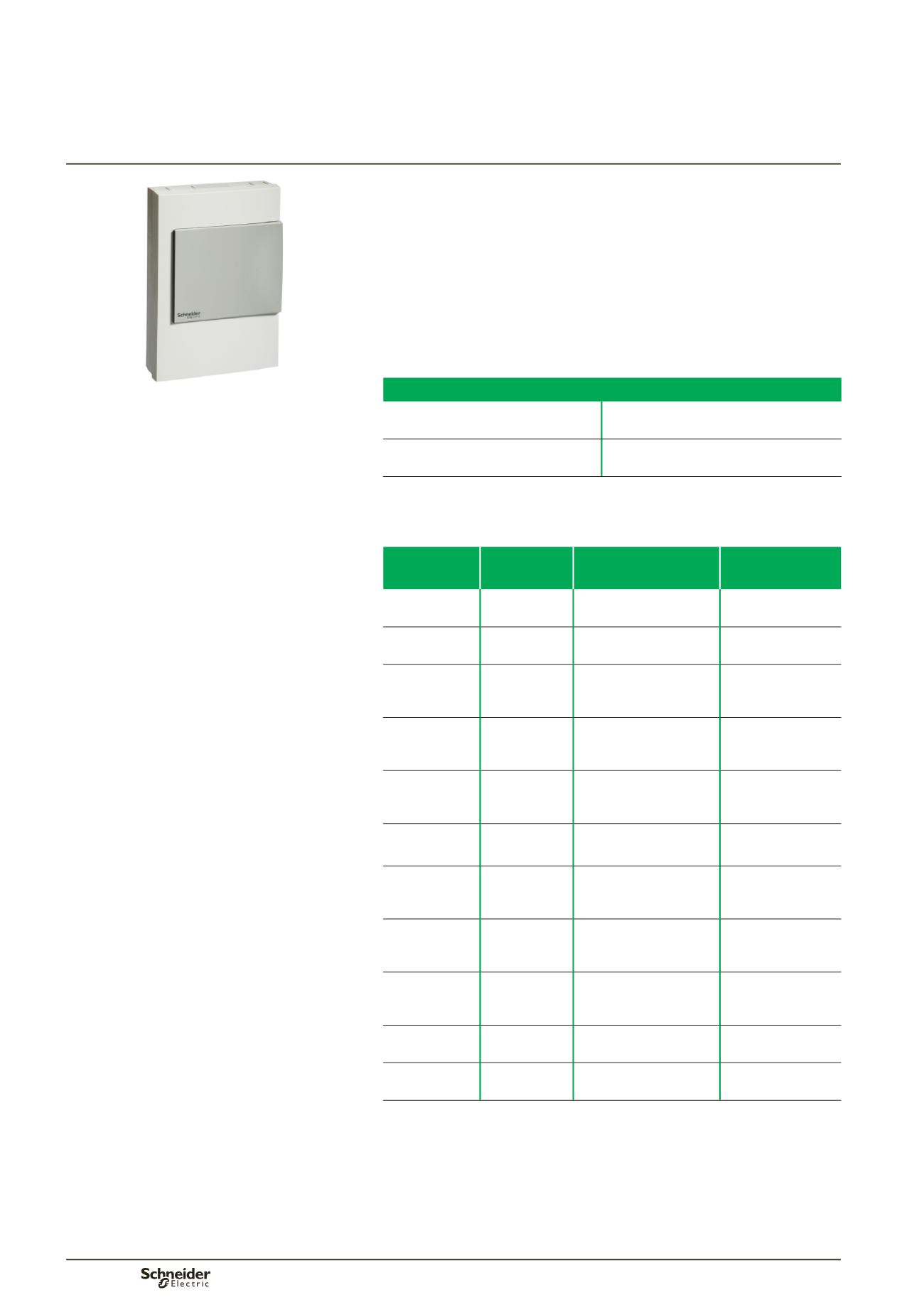

STR800 Series Living Space Temperature Sensors
The STR800 series of living space temperature sensors are designed to be used
with the I/A series of controllers and to replace the existing TSMN range.
The introduction of these sensors completes the STR range so a single design
style can be offered across the Schneider Electric range.
The products are simple to install and can be directly wall mounted or mounted on
to a back box. They are designed for use in any public building, such as offices,
hotels, schools or shopping malls. A model selection guide is shown below.
Part
number
Model
number
Description
Compare to
004607000 STR800
Living Space
temp sensor
TSMN-57011-850
004607100 STR801
Living Space temp
sensor w/ASD jack
TSMN-90220-850
004607200 STR802F
Living Space temp
w/°F set point Adj. &
Asd jack
–
004607210 STR802C
Living Space temp
w/°C set point Adj. &
Asd jack
–
004607220 STR802WC
Living Space temp
w/warmer/cooler set,
Point Adj. & Asd jack
–
004607300 STR803
Living Space temp
w/bypass & Asd jack TSMN-90230-850
004607400 STR804F
Living Space temp
w/bypass°F set point
Adj. & Asd jack
TSMN-90250-850
004607410 STR804C
Living Space temp
w/bypass°C set point
Adj. & Asd jack
TSMN-90250-852
004607420 STR804WC
Living Space temp w/
bypass/warmer/cooler
set point Adj. & Asd jack
–
004607500 STRBKO Living Space
temp sensor
TSMN-81011
004607510 STRPKO Living Space
temp sensor
TSMN-58011
Specifications
Output
NTC Thermistor, Balco, or Platinum
Resistance
Range
0-50°C (32°F to 122°F)
Max. 90% RH non-condensing
Full details of the product can be found on the data sheet.
For Accuracy see Appendix A table G.
