Valve and Actuator Catalogue
Globe Valve Actuators
Supply voltage
24 V AC +25% / -35%, 50-60 Hz
Increase/decrease
300 s/60 s
Duty cycle
Max. 20%/60 minutes
Analogue input
Voltage
0-10V / 2-10V / 0-5V / 5-10 / 2-6 / 6-10
Impedance
Min. 100 k
Ω
Digital inputs VH–VC
Voltage across open input
24 V AC
Current through closed input
5 mA
S2 Output – Auxiliary end point switch (optional)
Type
2 x SPDT
Voltage
24V AC
Load
4A (resistive) / 1A (inductive)
Output G1
Voltage
16 V DC ±0.3 V
Load
25 mA, short-circuit proof
Output Y
Voltage
2-10 V (0-100%)
Load
2 mA
Ambient temperature
Operation
-10 to +50°C
Storage
-10 to +50°C
Ambient humidity
Max. 90% RH
Enclosure rating
IP 54
Standards
Emission
EN 61326-1
Immunity
EN 61326-1
Material
Housing
Aluminium
Cover
ABS/PC plastic
Colour (M310,M400,M800,M1500)
Aluminium/red
Colour (M3000)
Black/red

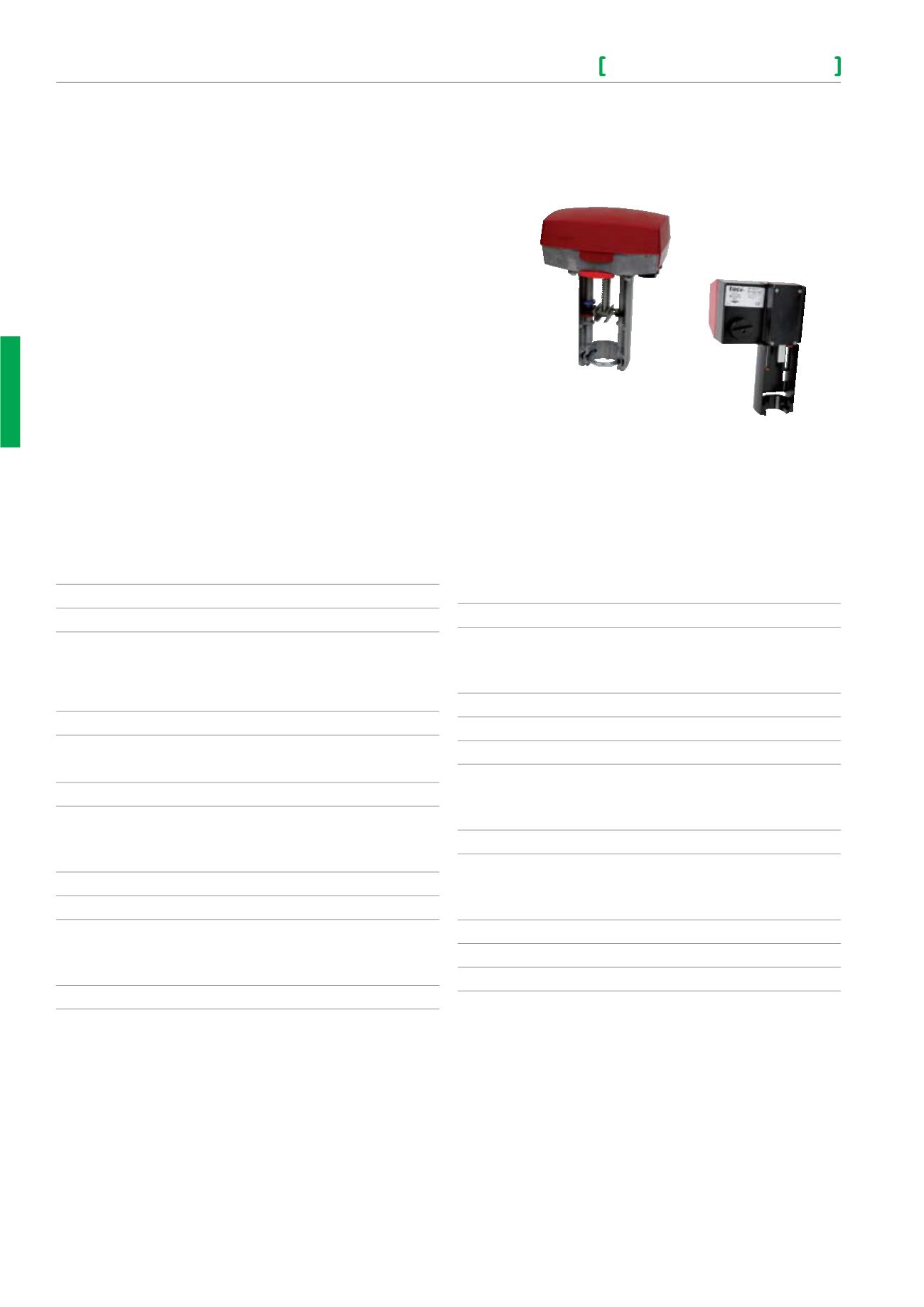

Forta: M310, M400, M800, M1500 and M3000
M310, M400, M800, M1500
M3000
Globe Valve Actuators
The Forta is a family of actuators for the control of 2 way and 3 way globe
valves.
The Forta has a very fine resolution PCBA board which ensures good
rangeability of the valve. The Software in the actuator calibrates the run-
ning time and S2 switch points to the valve stroke limits. It may also be
configured for different flow characteristics, inverse signal or sequence
control.
The U bolt mounting makes for a very easy and quick installation. The
manual override allows the actuator to be overridden and valve position
adjusted without disconnecting the power supply.
