Valve and Actuator Catalogue
Globe Valves
Design
2-way, pressure balanced plug valve,
stem up closed
Pressure class
PN 25
Flow characteristic
Equal percentage modified
Stroke
20 mm
Rangeability (Kvs/Kv min)
See table
Leakage
Up to 0.02% of Kvs
∆
Pm
Max. 800 kPa, water
Max. temperature of medium
150°C
Min. temperature of medium
-20°C
Flange drilling
According to SS 335 and ISO 2084
Materials
Body
Nodular iron SS 0727 (GGG40.3)
Plug and seat
Stainless steel SS 2346
Stem
Stainless steel SS 2346
Stem packing
EPDM

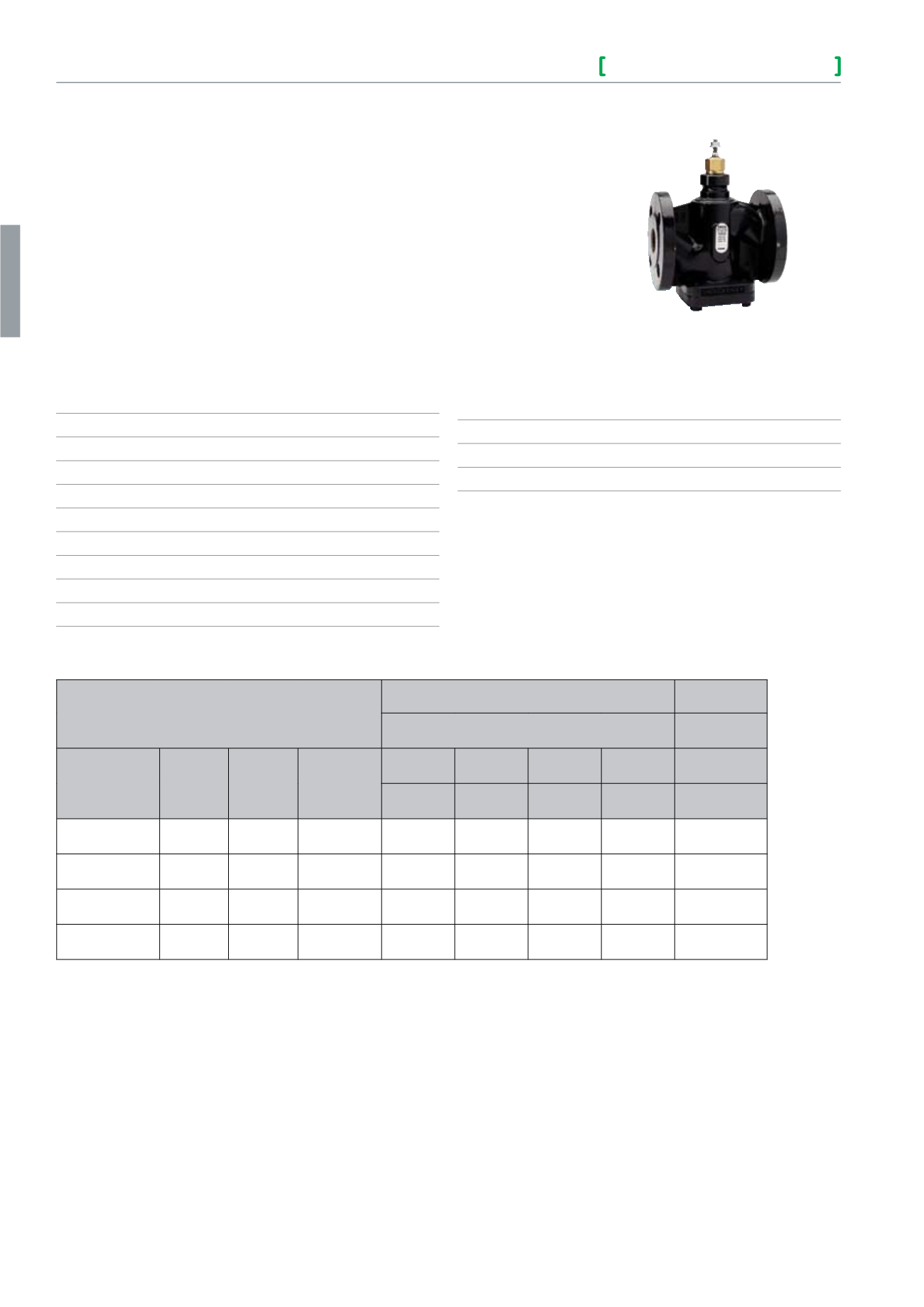

V232
The V232 is a pressure balanced flanged PN25 valve with high rangeabil-
ity and a high differential pressure capability. The balanced plug enables a
low actuating force to control the valve.
The valve is suitable for primary district heating circuits as well as hot and
chilled water applications where high pressure or a very fine resolution of
controllable flow is required.
If the valve is used for media at temperatures below 0°C, it should be
equipped with a heater in order to prevent ice formation on the valve stem.
V232
Max Close-off Pressure kPa
Non Spring Return Actuators
Spring Return
Part number
DN
Kvs
Rangeability
M400
M800
M1500
MV15B MG900 SR
400N
800N
1500N 1500N 900N
721-3238-000 25
10
>200
800
1600
1600
1600
1600
721-3242-000 32
16
>200
750
1600
1600
1600
1600
721-3246-000 40
25
>200
700
1600
1600
1600
1600
721-3250-000 50
38
>200
600
1600
1600
1600
1600
Replacement packing box: 1-001-0800-0
