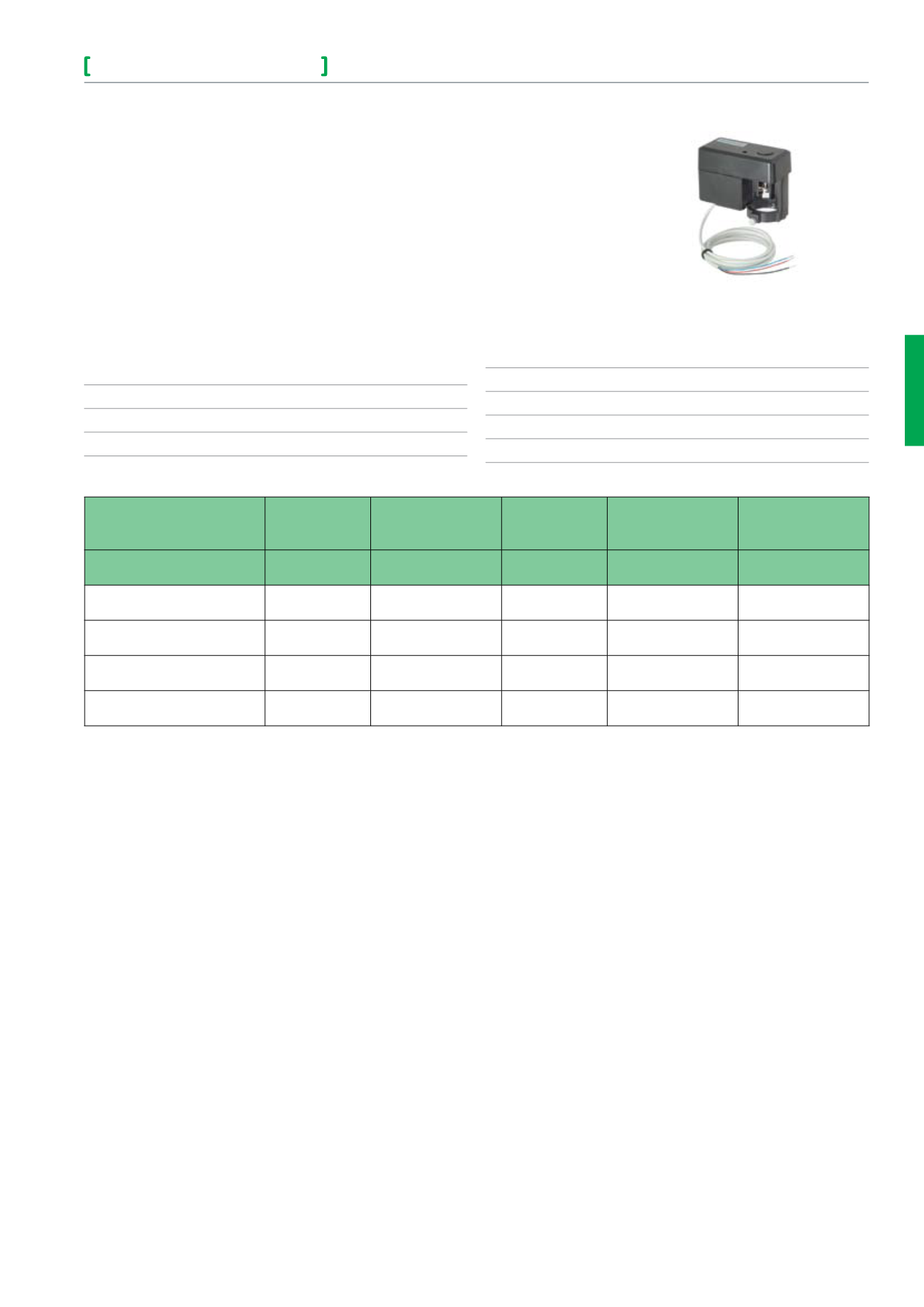

Globe Valve Actuators
AVUX, AVUM, AVUE
The AVUX, AVUM and AVUE are compact actuators used to operate the VZX
and MZX valves.
The AVUE 5304 and 5354 are modulating actuators. They have a linear output
drive, and they can be used with any controller providing a 0-10Vdc output
signal.
The AVUX is a 24Vac modulating linear actuator suitable to be driven from any
24Vac 3-point controller or device.
The AVUM is a mains voltage (230Vac) modulating linear actuator that can be
controlled from any controller or device having a 3-point mains switched output.
AVUE,AVUX,AVUM
Actuators for VZX, MZX valves Force Control Action Control signal Power supply Power
consumption 50Hz
Part number N Vac ±10% VA
AVUE5304 220 Direct Acting 0-10 V 24Vac 3.1
AVUE5354 220 Reverse Acting 0-10 V 24Vac 3.1
AVUX5202 220 Floating --- 24Vac 2.3
AVUM5601 220 Floating --- 230Vac 3.6
Input voltage AVUX 24 Vac, ±10% 50 Hz
Input voltage AVUM 230 Vac, ±10% 50 Hz
Input voltage AVUE 24 Vac, ±10% 50 Hz
Stroke 12.7mm
Running time 85 to 110 secs
Stem force 220N
Protection standard IP 40
Connection cable 1.5m
Ambient operating temperature 0 to 50°C
