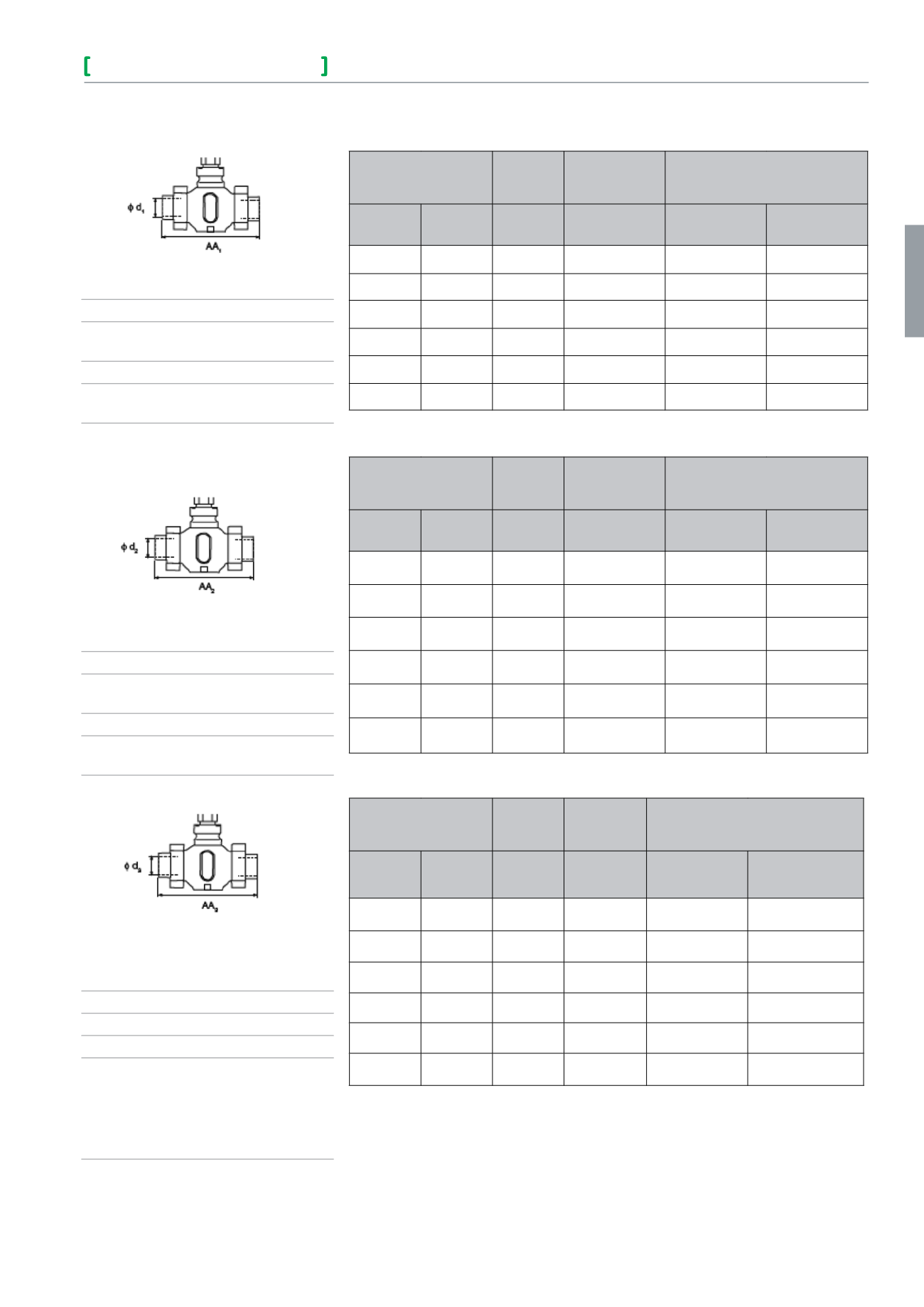

Globe Valves
Connections V341
Internal Thread Connection
Valve
Φd
1
AA
1
Part no. for connection,
one pkg/port
DN
End
Conn.
Int. thread
(ISO 7/1)
mm
Packing, std
Packing, spec.*
15
G1B
RP ½”
146
911-2100-015 911-2103-015
20
G1¼B RP ¾”
146
911-2100-020 911-2103-020
25
G1½B RP 1”
159
911-2100-025 911-2103-025
32
G2B
RP 1¼”
169
911-2100-032 911-2103-032
40
G2¼B RP 1½”
197
911-2100-040 911-2103-040
50
G2¾B RP 2”
222
911-2100-050 911-2103-050
* The accessory intended for the primary circuit of district heating connections.
Valve
Φd
2
AA
2
Part no. for connection,
one pkg/port
DN
End
Conn.
mm
mm
Packing, std
Packing, spec.*
15
G1B
15
136
911-2101-015 911-2104-015
20
G1¼B 22
146
911-2101-020 911-2104-020
25
G1½B 28
155
911-2101-025 911-2104-025
32
G2B
35
163
911-2101-032 911-2104-032
40
G2¼B 42
200
911-2101-040 911-2104-040
50
G2¾B 54
232
911-2101-050 911-2104-050
* The accessory combination intended for the primary circuit of district heating connections.
Valve
Φd
3
AA
3
Part no. for connection,
one pkg/port
DN
End
Conn.
mm
mm
Packing, std
Packing, spec.*
15
G1B
21.8
182
911-2102-015 911-2105-015 (1)
20
G1¼B 26.9
182
911-2102-020 911-2105-020 (1)
25
G1½B 33.7
187
911-2102-025 911-2105-025 (1)
32
G2B
42.4
197
911-2102-032 911-2105-032 (1)
40
G2¼B 48.3
232
911-2102-040 911-2105-040
50
G2¾B 60.3
262
911-2102-050 911-2105-050
(1) Material Union nut: brass SS 5252
* The accessory Combination intended for the primary circuit of district heating connections.
2 sets of connections required for 2 way valves
Materials
Union nut: malleable iron casting, galv.
Union end: Bronze, SS 5204
Packing, standard:
Fibre Gasket (Klingersil C4400)
or
Packing, spec:
PTFE Gasket (Kingersil Top Chem 1,5mm)
Materials
Union nut: malleable iron casting, galv.
Union end: malleable iron casting, galv.
Packing, standard:
Fibre Gasket (Klingersil C4400)
or
Packing, spec:
PTFE Gasket (Kingersil Top Chem 1,5mm)
Soldering Type Connection
Materials
Union nut:
Packing, standard:
Malleable iron casting, galv.
or
Packing, Spec: Brass
Union end: malleable iron casting, galv.
Packing, standard:
Fibre Gasket (Klingersil C4400)
or
Packing, spec:
PTFE Gasket (Kingersil Top Chem 1,5mm)
Welded Type Connection
