Valve and Actuator Catalogue
Globe Valves

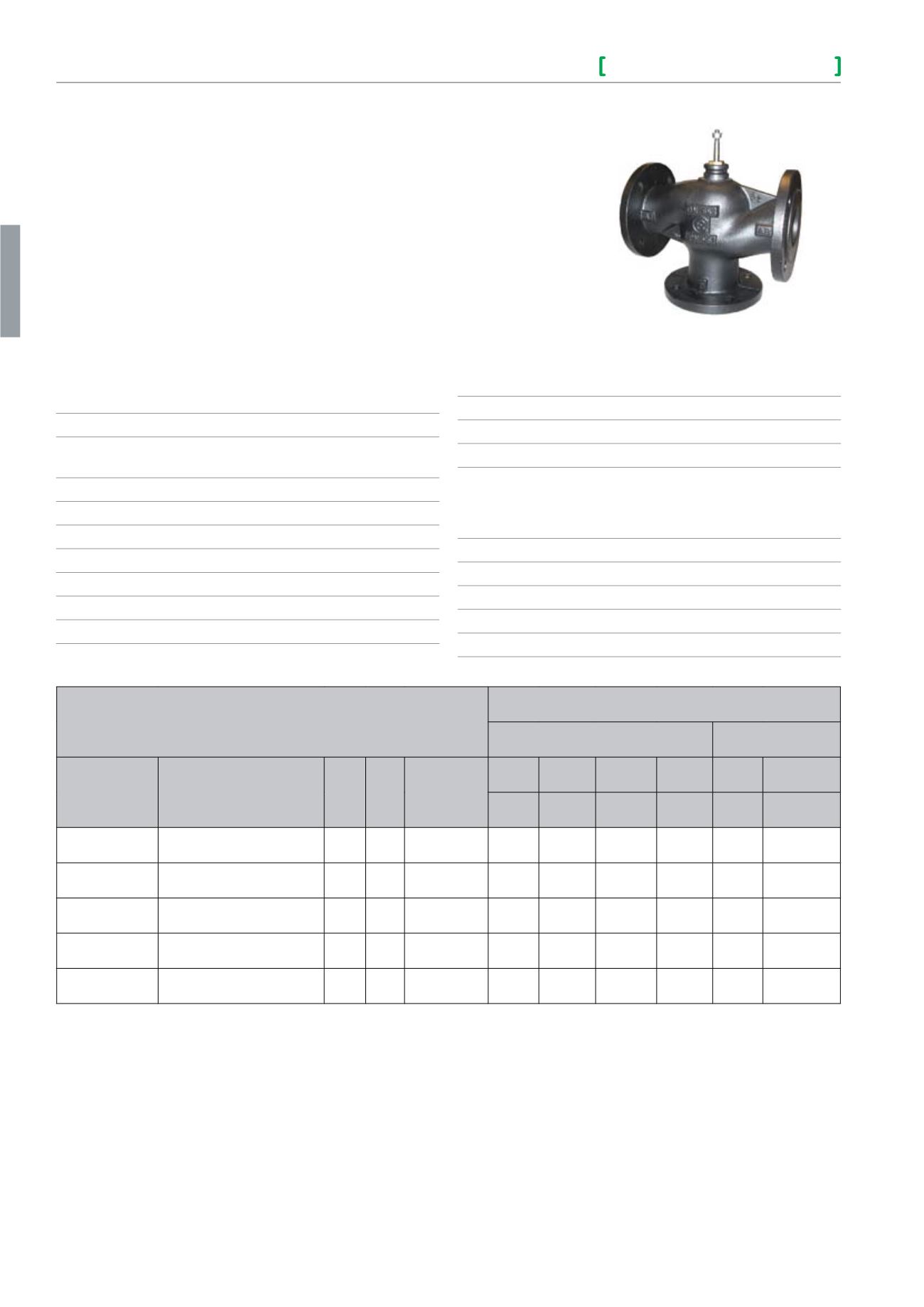

VG311F 65-150C (VG321)
The VG311F...C is a large flanged general purpose valve
The valve is suitable for a wide range of mixing applications with hot or chilled
water in heating cooling and air handling systems.
If the valve is used for media at temperatures below 0 °C, it should be equipped
with a stem heater in order to prevent ice formation on the valve stem.
Design
3-way plug mixing valve
stem up closed (A port/B-AB open)
Pressure class
PN 16
Connection
Flange according ISO 7005-2
Rangeability (Kvs/Kv min)
> 50
Flow characteristics A – AB
Equal Percentage
Flow characteristics B – AB
Linear
Stroke DN65
25 mm
DN80-150
45mm
Leakage A – AB
< 0.03% of Kvs
Leakage B – AB
< 2% of Kvs
∆
Pm
200 kPa, water
Max. temperature of medium
150°C
Min. temperature of medium
-10°C
Max. Glycol concentration
50%
Materials
Body
Grey Cast iron (GJL 250)
Stem
Stainless steel (AISI 303)
Plug (DN65-100)
Brass (CW614)
Plug (DN125-150)
Bronze (CB491K UNI EN 1982)
Seat
Grey Cast iron (EN JL 1040)
Stem Packing
EPDM
VG311F...C
Max Close-off Pressure kPa
Non Spring Return Actuators
Spring Return
Part number
Type Designation
DN Kvs Rangeability
M800 M1500 MV15B M3000 M700 MG900 SR
800N 1500N 1500N 3000N 700N 900N
VG311F-65C VG311F-65C 63M SU00
65 63 >50
240 400
400
850
220 290
VG311F-80C VG311F-80C 100M SU00
80 100 >50
160 240
240
570
140 --
VG311F-100C VG311F-100C- 130M SU00 100 130 >50
100 150
150
370
80
--
VG311F-125C VG311F-125C 200M SU00 125 200 >50
60
90
90
230
50
--
VG311F-150C VG311F-150C 300M SU00 150 300 >50
40
50
50
160
35
--
Replacement packing box: 1-001-0810-0
