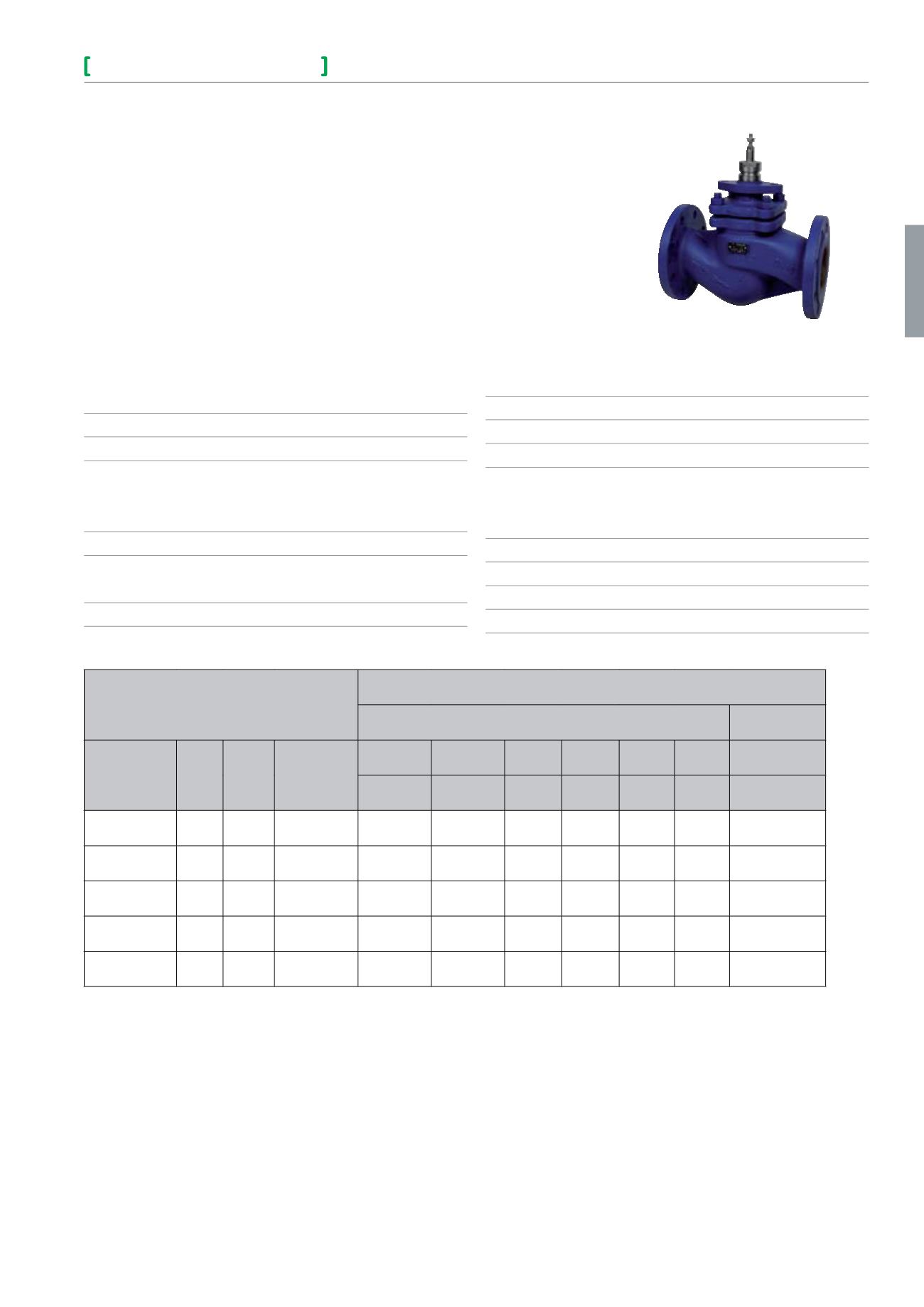

Globe Valves
V292
The V292 is a large pressure balanced flanged valve to PN25. The
balanced plug enables a low actuating force to control the valve.
The valve is suitable for primary district heating circuits as well as high
pressure hot and chilled water applications
V292
Max Close-off Pressure kPa
Non Spring Return Actuators
Spring Return
Part number
DN Kvs
Rangeability
M800
M1500
MV15B M3000 M22
M50 M700
800N
1500N 1500N 3000N 2200N 5000N 700N
721-9254-000 65
63
>50
1500
2500
2500 2500 ---
---
1200
721-9258-000 80
85
>50
1500
2500
2500 2500 ---
---
1200
721-9262-000 100 130 >50
1100
1600
1600 2500 ---
---
800
721-9266-000 125 250 >50
---
---
---
---
1800 2500 ---
721-9270-000 150 350 >50
---
---
---
---
1400 2500 ---
Replacement packing box
DN65-100: 1-001-0820-0
DN125-150: 1-001-0821-0
StemHeater
DN65-100: 880-0112-000
DN125-150: 880-0113-000
Replacement stemadaptor/hex bush:
DN125-150: 880-0134-000
Design
2-way pressure balanced plug valve
stem down, closed
Pressure class
PN 25
Flow characteristics
Equal Percentage
Stroke
DN 65 – DN 100
30 mm
DN 125 – DN 150
50 mm
Rangeability (Kvs/Kv min)
> 50
Leakage
<0.05% of Kvs
Max. temperature of medium
150°C
Min. temperature of medium
-10°C
Max. Glycol concentration
50%
Connection
Flange according ISO 7005-2
Materials
Body
Nodular iron GGG40.3
Stem
Stainless steel SS 1.4021
Plug
Stainless steel SS 1.4021
Seat
Stainless steel SS 1.4021
Packing box
Spring-loaded PTFE-V-ring
