Valve and Actuator Catalogue
Globe Valve Actuators
Supply voltage
24 V AC ±10%, 50-60 Hz
230 V AC ±10%, 50-60 Hz
Power consumption
12 VA
Transformer sizing
15 VA
Running speed
0.75 mm/s
Running time for 20 mm
27s
Stroke
9 to 52 mm
Thrust
1500 N
Ambient temperature
Operation
15 to 50°C
Storage
-25 to +65°C
Enclosure rating
IP 55
Standards
Emission
EN 61326-1
Immunity
EN 61326-1
LVD Low Voltage directive
EN 61010-1
Material
Housing
Aluminium
Cover
ABS plastic
Colour
Black/red
Optional auxiliary travel switch S2-MV15B
Type
SPDT 10A (resistive) 3A (inductive)
Capacity
250 V

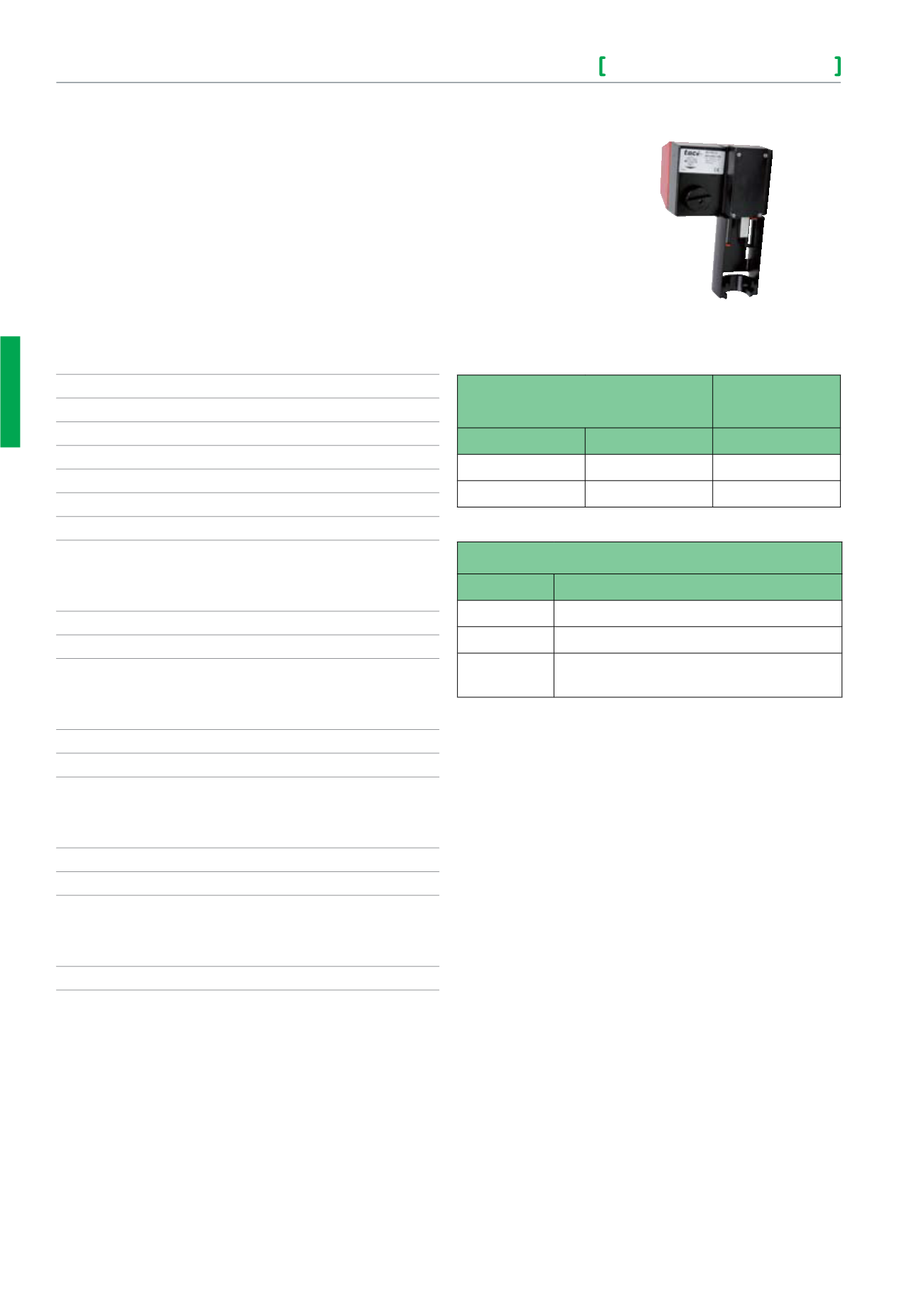

MV15B
The MV15B is a powerful 3 point floating actuator for the control of 2 way
and 3 way globe valves.
The actuator is available in both a 24V AC and 230V AC versions
The actuator self adjusts to the stroke of whatever valve it is connected to.
The U bolt mounting makes for a very easy and quick installation. A manual
override is standard on all models.
MV15B actuators
Power supply
Part number
Description
Vac +10%/ -10%
880-0460-000
MV15B-230
230
880-0462-000
MV15B-24
24
MV15B accessories & linkage kits
Part number
Description
880-0126-000 Linkage M700-Satchwell L7SV
880-0469-000 Switch S2-MV15B
880-0109-000 Forta Yoke Heater for amb. temp -10°C, media temp
-8°C
