Valve and Actuator Catalogue
Schneider Electric Telephone Europe: Malmö , Sweden +46 40 38 68 50 Telephone Asia Pacific: Singapore +65 6776 3166www.schneider-electric.com
VACAT_July2011 July 2011 ao
Globe Valves
Flow characteristics A – AB Equal Percentage
Flow characteristics B – AB Linear
Stroke
DN 65-100 30 mm
DN 125-150 40 mm
Leakage A – AB DN65 – DN100 <0.05% of Kv
Leakage B – AB DN65 – DN100 <0.05% of Kv
Max. temperature of medium 130°C
Min. temperature of medium -10°C
Max. Glycol concentration 50%
Materials
Body Grey Cast iron GG25
Stem
DN 65-100 Stainless steel SS 1.4571
DN 125-150 Stainless steel SS 1.4021
Plug Stainless steel SS 1.4021
Seat Stainless Steel SS 1.4021
Stem Packing EPDM

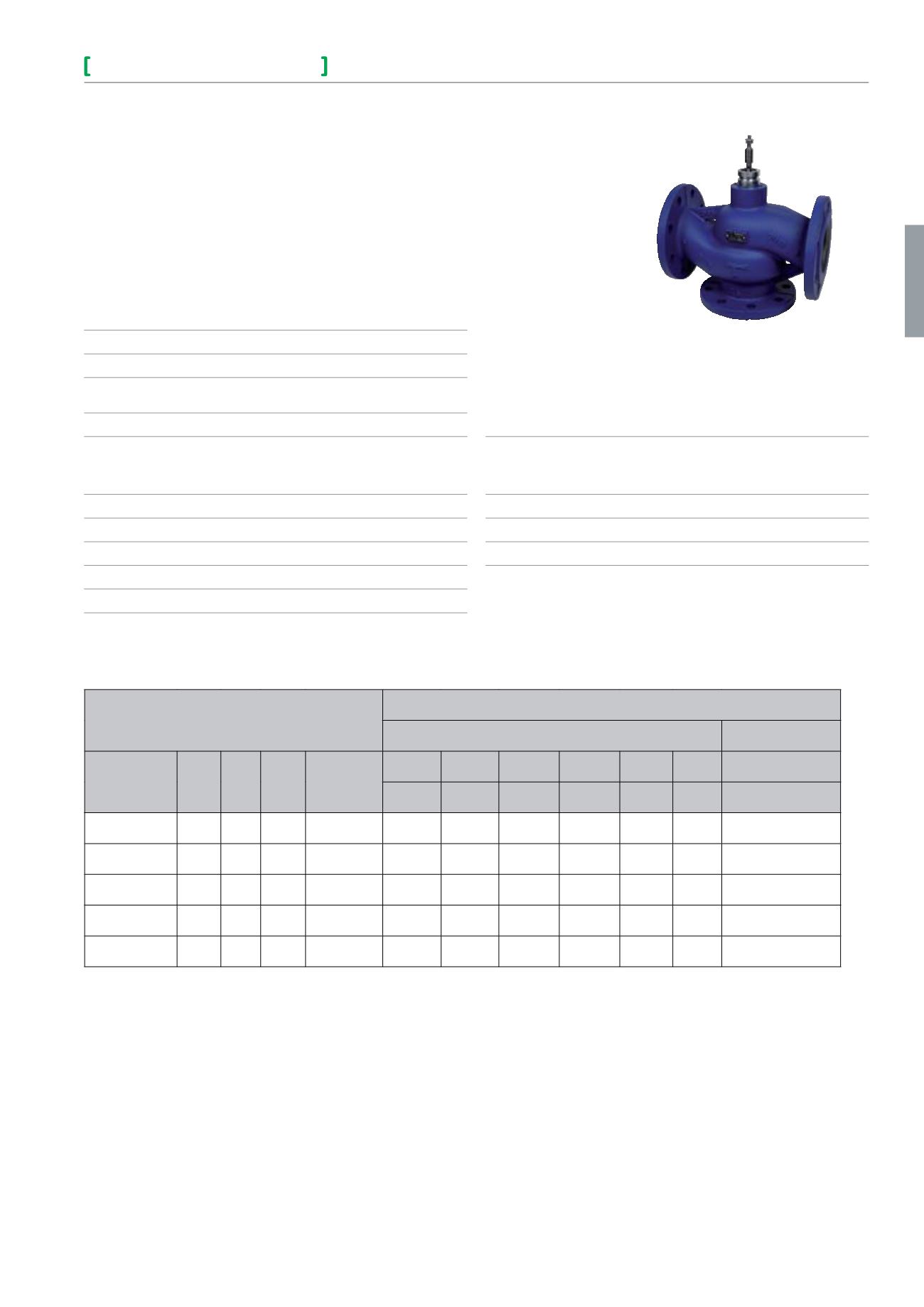

V321
The V321 is a large flanged valve with a stainless steel seat for high pressure
drops
The valve is suitable for a wide range of mixing applications with hot or chilled
water in heating cooling and air handling systems.
If the valve is used for media at temperatures below 0 °C , it should be
equipped with a heater in order to prevent ice formation on the valve stem.
Design 3-way plug mixing valve
stem up closed (A port/B-AB open)
Pressure class PN 16
Connection Flange according ISO 7005-2
V321
Max Close-off Pressure kPa
Non Spring Return Actuators Spring Return
Part number DN Kvs ∆Pm Rangeability
M800 M1500 MV15B M3000 M22 M50 M700
800N 1500N 1500N 3000N 2200N 5000N 700N
731-2153-010 65 63 100 >30 140 290 290 700 --- --- 80
731-2157-010 80 100 80 >30 80 180 180 440 --- --- 40
731-2161-010 100 160 60 >30 40 110 110 280 --- --- ---
731-2165-010 125 220 60 >30 --- --- --- --- 90 340 ---
731-2169-010 150 320 60 >30 --- --- --- --- 60 240 ---
Replacement packing box: DN65-100: 1-001-0822-0 DN-150: 1-001-0823-0
Conversion kit - V321 with old M16 actuator to Forta connection: 880-0130-000
StemHeater
DN65-100: 880 0110 000
DN125-150: 880 0111 000
Replacement Stem adaptors,
DN65-100: 880-0133-000
DN125-150: 1-001-0824-0
Blanking flange set, to convert a V321 into a 2 way valve, e.g. when upgrading installations with VSD pumps.
DN65 913-0065-000, DN80 913-0080-000, DN100 913-0100-000,
DN125 913-0125-000; DN150 913-0150-000
Tight sealing versions available, contact Product Support for details.
