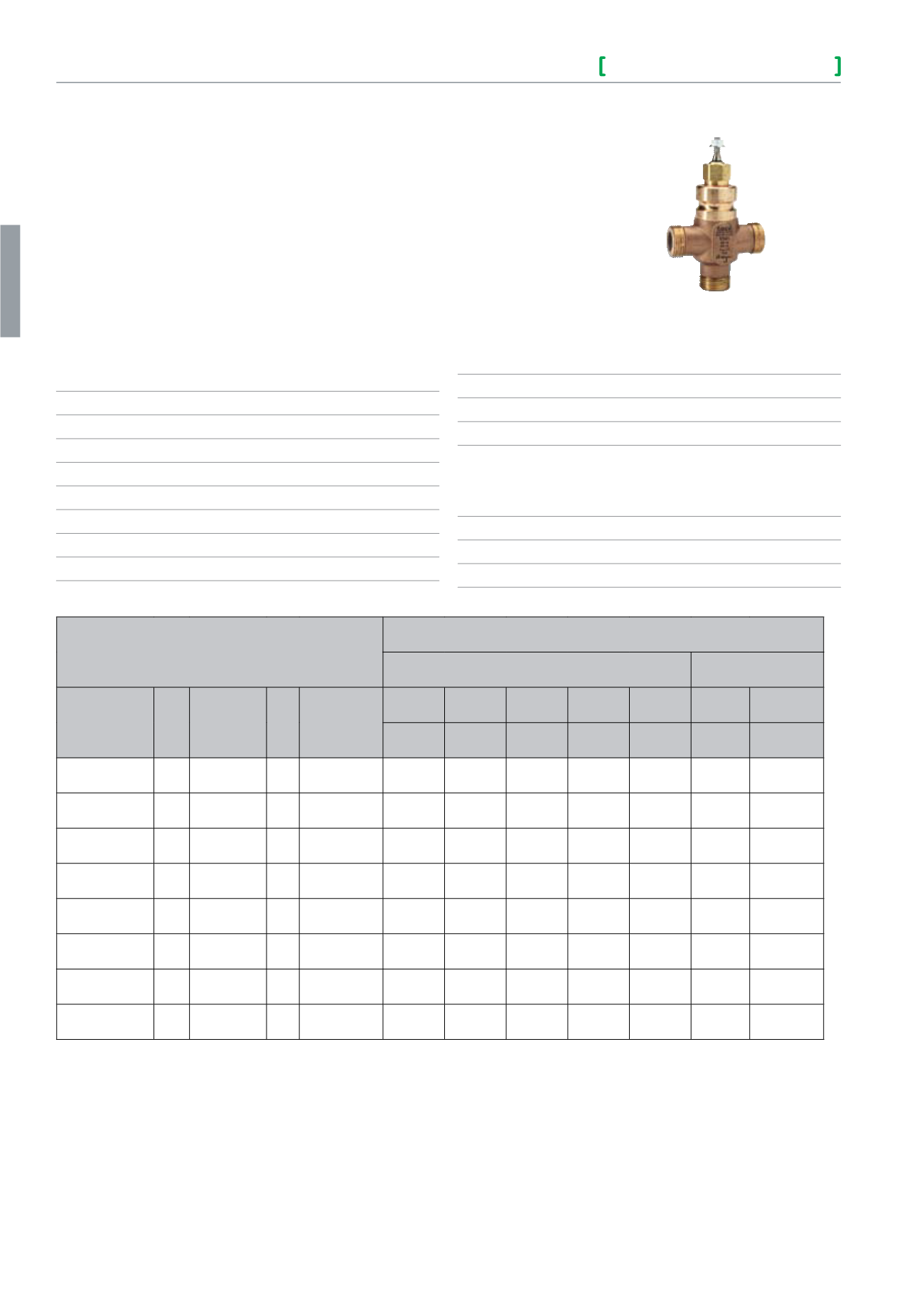

Valve and Actuator Catalogue
Globe Valves
V341
The V341 is a high quality general purpose valve. Polished stainless seats
provide high differential pressure capability and low leakage.
The valve is suitable for a wide range of applications such as heating,
cooling, air handling and domestic hot water systems. The valve can han-
dle hot and cold water with phosphate, hydrazine and antifreeze additives.
If the valve is used for media at temperatures below 0°C, it should be
equipped with a heater in order to prevent ice formation on the valve stem.
V341
Max Close-off Pressure (kPa)
Non Spring Return Actuators
Spring Return
Part number
DN Connection Kvs Rangeability
M310
M400
M800
M1500 MV15B M700 MG900 SR
300N 400N 800N 1500N 1500N 700N 900N
731-4121-000 15 G1B
1.6 >50
800
800
1600
1600
1600
1400
1600
731-4125-000 15 G1B
2.5 >50
800
800
1600
1600
1600
1400
1600
731-4129-000 15 G1B
4.0 >50
800
800
1600
1600
1600
1400
1600
731-4133-000 20 G1¼B
6.3 >100
650
650
1500
1600
1600
1100
1510
731-4137-000 25 G1½B
10 >100
400
500
1150
1600
1600
850
1160
731-4141-000 32 G2B
16 >100
300
350
850
1350
1350
650
855
731-4145-000 40 G2¼B
25 >100
150
250
600
950
950
450
605
731-4149-000 50 G2¾B
38 >100
50
150
400
650
650
300
415
Replacement packing box: 1-001-0800-0
Design
3-way plug valve
Stem up closed, A port (B-AB open)
Pressure class
PN 16
Flow characteristics A-AB
Equal percentage modified
Flow characteristics B-AB
Complementary
Stroke
20 mm
Rangeability (Kvs/Kv min)
See table
Leakage A-AB
up to 0.02% of Kvs
Leakage B-AB
up to 0.05% of Kvs
∆
Pm
600 kPa, water
Max. temperature of medium
150°C
Min. temperature of medium
-20°C
Connection
External pipe thread according to ISO 228/1
Glycol Concentration
50%
Materials
Body
Bronze Rg5
Plug and seat
Stainless steel SS 2346
Stem
Stainless steel SS 2346
Stem packing
EPDM
