Valve and Actuator Catalogue
Zone Valves and Actuators

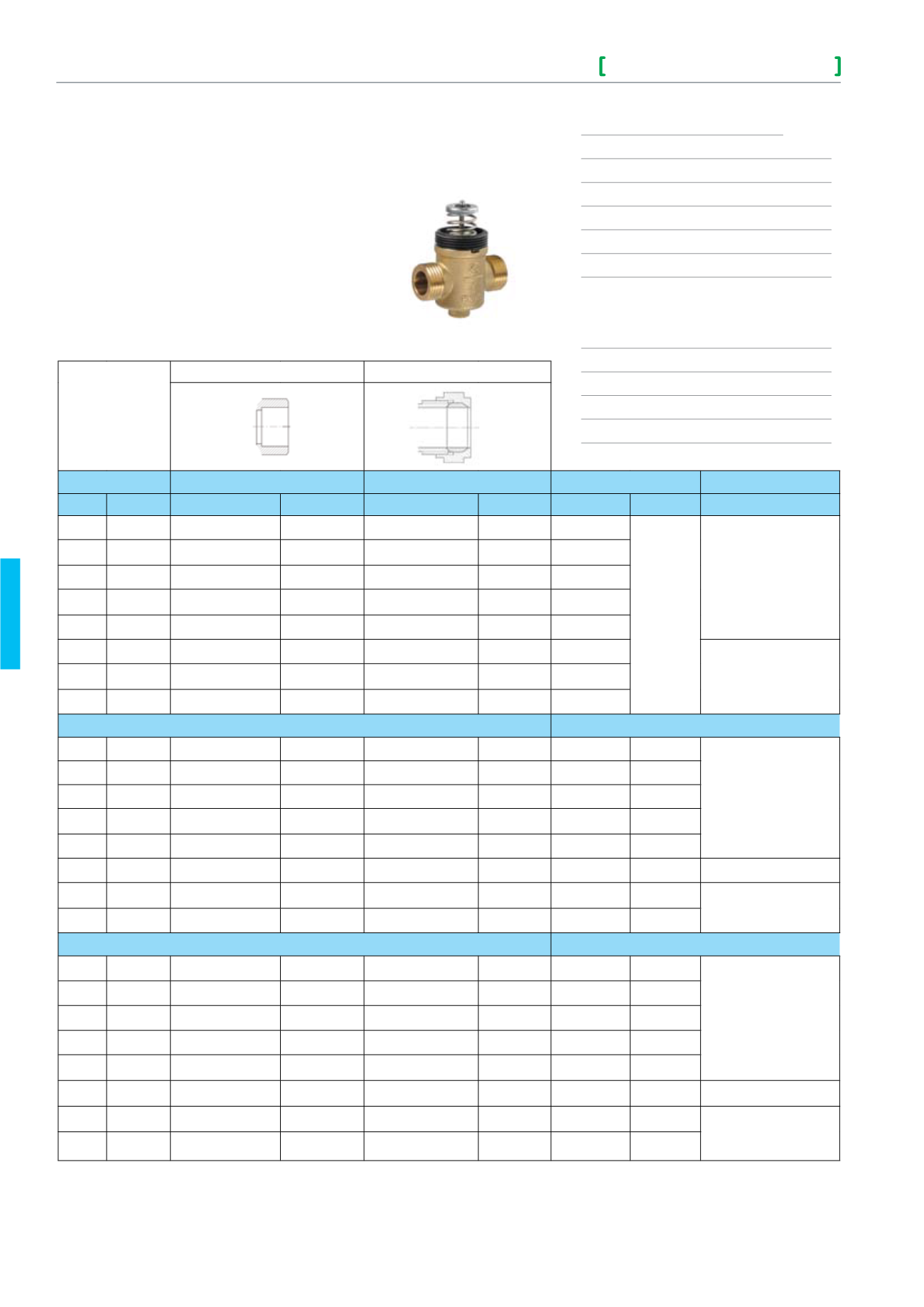

VZ*08*
These small linear valves are designed for
control of hot and chilled water in fan coils
or other terminal unit applications.
These particular valves are designed to be
used with thermo-electric actuators type
MZ140, which is available in an on/off or a
modulating variant.
VZ*08E
VZ*08C
Two-way valves
Flat face
Compression*
Kvs
Max Close-off – kPa
Size Kv
Part Number
Connection Part Number
Connection A-AB
B-AB
MZ140
DN15 0,25
VZ208E-15BP01 G1/2A
VZ208C-15BP01 15mm 0.25
--
250
DN15 0,4
VZ208E-15BP02 G1/2A
VZ208C-15BP02 15mm 0.4
DN15 0,6
VZ208E-15BP03 G1/2A
VZ208C-15BP03 15mm 0.6
DN15 1
VZ208E-15BP04 G1/2A
VZ208C-15BP04 15mm 1
DN15 1,6
VZ208E-15BP05 G1/2A
VZ208C-15BP05 15mm 1.6
DN20 2,5
VZ208E-20BP07 G3/4A
VZ208C-20BP07 22mm 2.5
150
DN20 4
VZ208E-20BP08 G3/4A
DN20 6
VZ208E-20BP09 G3/4A
Three-way valves
DN15 0,25
VZ308E-15BP01 G1/2A
VZ308C-15BP01 15mm 0.25
0.25
250
DN15 0,4
VZ308E-15BP02 G1/2A
VZ308C-15BP02 15mm 0.4
0.4
DN15 0,6
VZ308E-15BP03 G1/2A
VZ308C-15BP03 15mm 0.6
0.6
DN15 1
VZ308E-15BP04 G1/2A
VZ308C-15BP04 15mm 1
0.8
DN15 1,6
VZ308E-15BP05 G1/2A
VZ308C-15BP05 15mm 1.6
1
DN20 2,5
VZ308E-20BP07 G3/4A
VZ308C-20BP07 22mm 2.5
1.6
150
DN20 4
VZ308E-20BP08 G3/4A
100 A-AB
40 B-AB
DN20 6
VZ308E-20BP09 G3/4A
Three-way valves with integral by-pass (4 ports)
DN15 0,25
VZ408E-15BP01 G1/2A
VZ408C-15BP01 15mm 0.25
0.25
250
DN15 0,4
VZ408E-15BP02 G1/2A
VZ408C-15BP02 15mm 0.4
0.4
DN15 0,6
VZ408E-15BP03 G1/2A
VZ408C-15BP03 15mm 0.6
0.6
DN15 1
VZ408E-15BP04 G1/2A
VZ408C-15BP04 15mm 1
0.8
DN15 1,6
VZ408E-15BP05 G1/2A
VZ408C-15BP05 15mm 1.6
1
DN20 2,5
VZ408E-20BP07 G3/4A
VZ408C-20BP07 22mm 2.5
1.6
150
DN20 4
VZ408E-20BP08 G3/4A
100 A-AB
40 B-AB
DN20 6
VZ408E-20BP09 G3/4A
Zone Valves-Short Stroke
Valve types
2-way, 3-way, 3-way with bypass
Pressure class
PN16
Stroke
2.5 mm
Max fluid speed
3 m/s
Media Water, water+glycol (30% max)
Temperature
5 to 95°C
Leakage
0% tight close-off
Materials
Valve body
Brass (AISI 303)
Trim
Glass reinforced PPS
Stem
Stainless steel (AISI 303)
Stem packing
Double EPDM O-ring
Plug sealing
EPDM
* Nuts and Olives supplied with Valve
