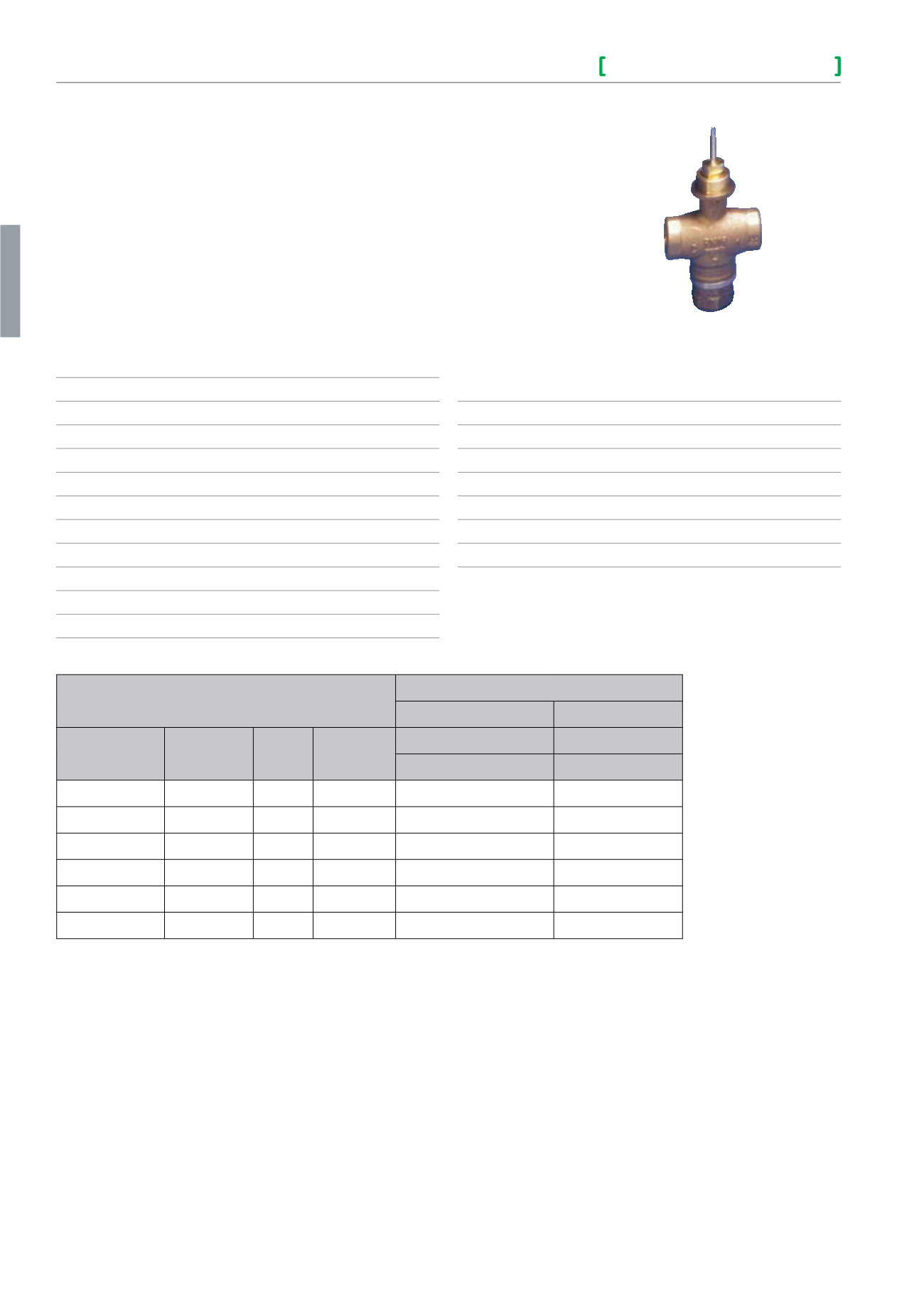

Valve and Actuator Catalogue
Globe Valves
Design 3-way plug valve, stem up closed, A-AB (B-AB open)
Pressure class
PN 16
Flow characteristic Port 2
Modified Parabolic
Flow characteristic Port 3
Linear
Stroke ½” and ¾” Valves
9.5mm
Stroke 1” to 2” Valves
15.9mm
Rangeability (Kvs/Kv min)
50
Leakage (Ports 2-1)
Max. 0.1% of Kvs
Leakage (Ports 3-1)
Max. 0.5% of Kvs
Max. temperature of medium
120°C
Min. temperature of medium
2°C
Connections
Rp internal pipe thread (BSP to BS21)
MZ
Satchwell MZ valves are suitable for a wide range of applications, such
as heating, cooling, air handling and domestic hot water systems. These
valves have a linear moving spindle and a modified parabolic characterised
plug operating against the upper seat, which controls flow quantity to suit
the load. The lower part of the plug has a linear characteristic operating
against the lower seat, and controlling the bypass quantity.
MZ valves can also be used with a medium of max. 25% glycol solution.
MZ
Max Close-off Pressure kPa
Non Spring return actuator
Spring return actuator
Part number
Connection Kvs
Rangeability
M800
1
M700
2
800N
700N
MZ3402
Rp ½”
2.6
50
1600
1600
MZ3452
Rp ¾”
4.2
50
1600
1600
MZ3501
Rp 1”
8.3
50
1262
1262
MZ3551
Rp 1¼”
12.5
50
755
755
MZ3601
Rp 1½”
21
50
533
533
MZ3651
Rp 2”
33
50
312
312
(1) Use Linkage Kit L2SV
(2) Use Linkage Kit L7SV
Replacement Packing box: 0626-9-203
Materials
Body
Bronze: Leaded Gunmetal BS1400 LG2
Stem
Stainless steel BS970 Grade 303 S42
Plug
Copper Alloy BS2874 CZ132 or BS2871 CZ 110
Sealing
Gland O Ring
Seat Top
Integral with body
Seat Bottom (½” & ¾” valves) Copper Alloy BS2874 CZ 132
Seat Bottom (1” to 2” valves) Leaded Gunmetal BS1400 LG2
Stem Packing
PTFE Chevrons
