Valve and Actuator Catalogue
Globe Valve Actuators
Standards
Emission
EN 61326-1
Immunity
EN 61326-1
Material
Housing
Aluminium
Cover
ABS/PC plastic
Colour
Black/red
Forta M700 actuators
Part number
Description
880-0430-000
M700-SRSU
880-0431-000
M700-S2-SRSU
880-0440-000
M700-SRSD
880-0441-000
M700-S2-SRSD
Forta M700 Accessories
Part number
Description
880-0126-000
Linkage M700-Satchwell L7SV
880-0109-000
Forta Yoke Heater for amb. temp -10°C,
media temp -8°C
Key:
S2
auxiliary switch
SRSU
spring return stem up
SRSD
spring return stem down
L7SV
Satchwell linkage to VZ and MZ valves

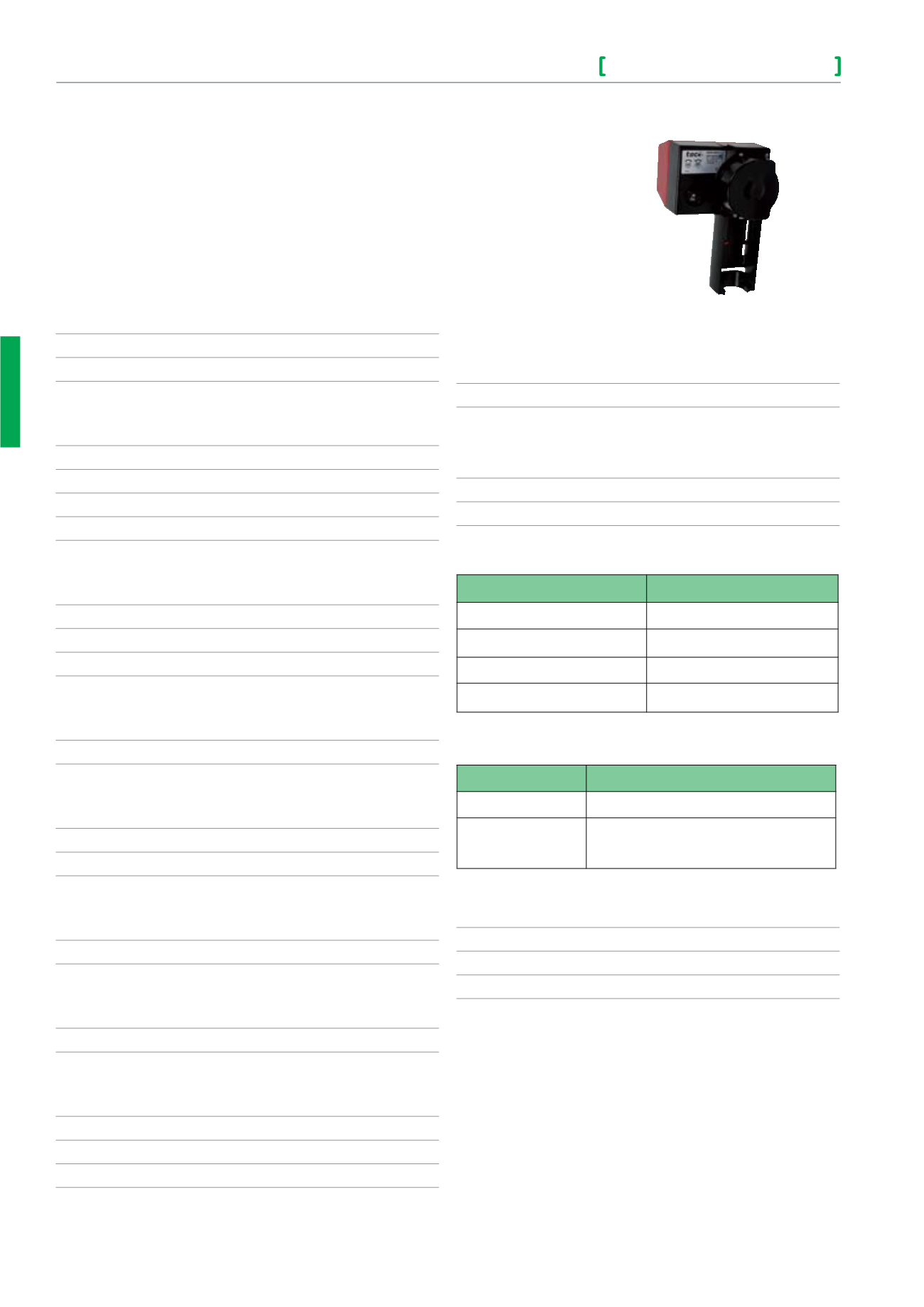

Forta M700 - Spring Return
The TAC Forta M700 is a spring return actuator for the control of 2 and 3 way
globe valves.
It utilises the same PCBA as the Forta non spring return actuators and so has
the same capability with regard to self adapting to the valve stroke, and the same
flexibility with regard to set up configuration.
The U bolt mounting makes for a very easy and quick installation. A manual over-
ride is standard on all models.
Supply voltage
24 V AC +25% / -30%, 50-60 Hz
Power consumption
Average 30 VA
Transformer sizing
50 VA
Spring return close off time at power failure
20 mm stroke
Less than 50 seconds
45 mm stroke
Less than 95 seconds
Stroke
9 to 52 mm
Thrust
700 N
Duty cycle
Max. 20%/60 minutes
Running time
Modulating 10 to 25 mm
15s
Modulating 25 to 32 mm
20s
Modulating 10 to 52 mm
30s
Increase/decrease
300s/60s
Analogue input
Voltage
0-10V / 2-10V / 0-5V / 5-10V / 2-6V / 6-10V
Impedance
Min. 100 k
Ω
Digital inputs VH–VC
Voltage across open input
24 V AC
Current through closed input
5 mA
Pulse time
Min. 20 ms
Output G1
Voltage
16 V DC ±0.3 V
Load
25 mA, short-circuit proof
Output Y
Voltage
2-10 V (0-100%)
Load
2 mA
Ambient temperature
Operation
-10 to 50 °C
Storage
-10 to 50 °C
Ambient humidity
Max. 90% RH
Enclosure rating
IP 54
