Valve and Actuator Catalogue
Globe Valves

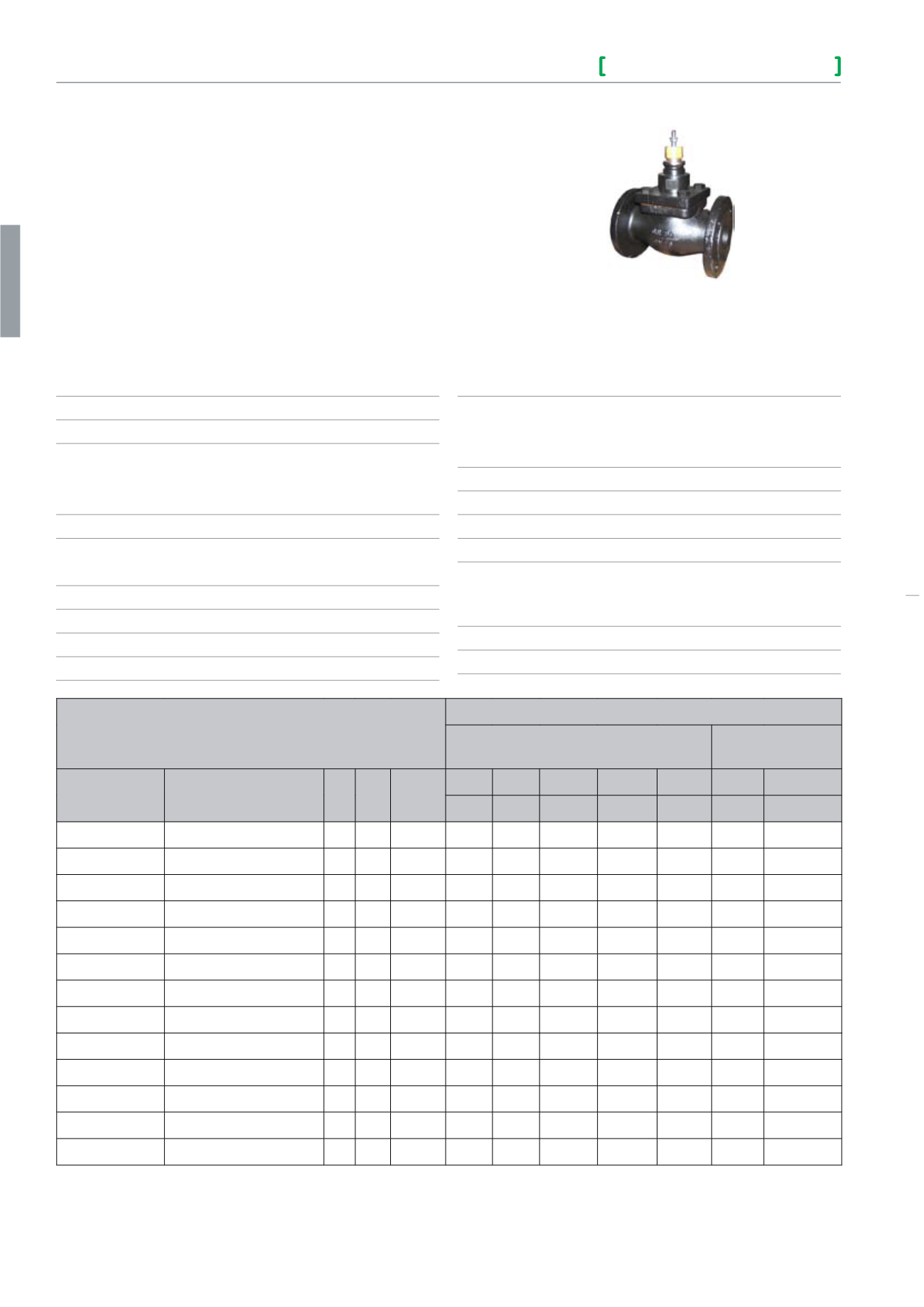

VGS211F 15-100CS (VG211)
The VGS211F...CS is a flanged high temperature valve for media tem-
peratures up to 200ºC
Primarily designed for steam but also suitable for a wide range of ap-
plications such as heating, cooling and air handling systems with hot or
chilled water and steam.
If the valve is used for media at temperatures below 0 °C, it should be
equipped with a stem heater in order to prevent ice formation on the
valve stem.
Design
2-way plug valve, stem up open
Pressure class
PN 16
Flow characteristic
Equal Percentage
Rangeability (Kvs/Kv min)
DN15-20
>50
DN25-100
>35
Leakage
0,02% of Kvs
∆
Pm
600 kPa
Max. temperature of medium
200°C
Min. temperature of medium
-10°C
Max. glycol/concentration
50%
Connections
Flange according to ISO 7005-2
Materials
Body
Cast iron , EN-GJL 250
Stem
Stainless steel (AISI 303)
Plug
Stainless steel (AISI 303)
Seat
Stainless steel (AISI 303)
Stem Packing
Spring Loaded PTFE V-Ring
Stroke
DN 15 to DN 25
16.5 mm
DN 32 to DN 65
25 mm
DN 80 to DN 100
45 mm
VGS211F...CS
Max Close-off Pressure kPa
Non Spring Return Actuators
Spring Return
Part number
Type Designation
DN Kvs Range-
ability
M400 M800 M1500 MV15B M3000 M700 MG900 SR
400N 800N 1500N 1500N 3000N 700N 900N
VGS211F-15CS03 VGS211F-15CS 0.63M SD00 15 0.6 >50
1600 1600 1600
1600
-
1600
1600
VGS211F-15CS04 VGS211F-15CS 1M SD00
15 1.0 >50
1600 1600 1600
1600
-
1600
1600
VGS211F-15CS05 VGS211F-15CS 1.6M SD00 15 1.6 >50
1600 1600 1600
1600
-
1600
1600
VGS211F-15CS07 VGS211F-15CS 2.5M SD00 15 2.5 >50
1300 1600 1600
1600
-
1600
1600
VGS211F-15CS08 VGS211F-15CS 4M SD00
15 4.0 >50
1300 1600 1600
1600
-
1600
1600
VGS211F-20CS VGS211F-20CS 6.3 M SD00 20 6.3 >50
750 1600 1600
1600
-
1500
1600
VGS211F-25CS VGS211F-25CS 10M SD00 25 10 >35
450 1300 1600
1600
-
900
1300
VGS211F-32CS VGS211F-32CS 16M SD00 32 16 >35
450 1300 1600
1600
-
900
1300
VGS211F-40CS VGS211F-40CS 25M SD00 40 25 >35
250 800 1350
1350
-
550
800
VGS211F-50CS VGS211F-50CS 40M SD00 50 40 >35
150 500 900
900
-
350
500
VGS211F-65CS VGS211F-65CS 63M SD00 65 63 >35
-
210 350
350
720
150
210
VGS211F-80CS VGS211F-80CS 110M SD00 80 110 >35
-
150 250
250
550
100
-
VGS211F-100CS VGS211F-100CS 140M SD00 100 140 >35
-
90
150
150
350
60
-
Replacement packing box: 1-001-0811-0
