Butterfly Valves and Actuators
ButterflyValveActuators

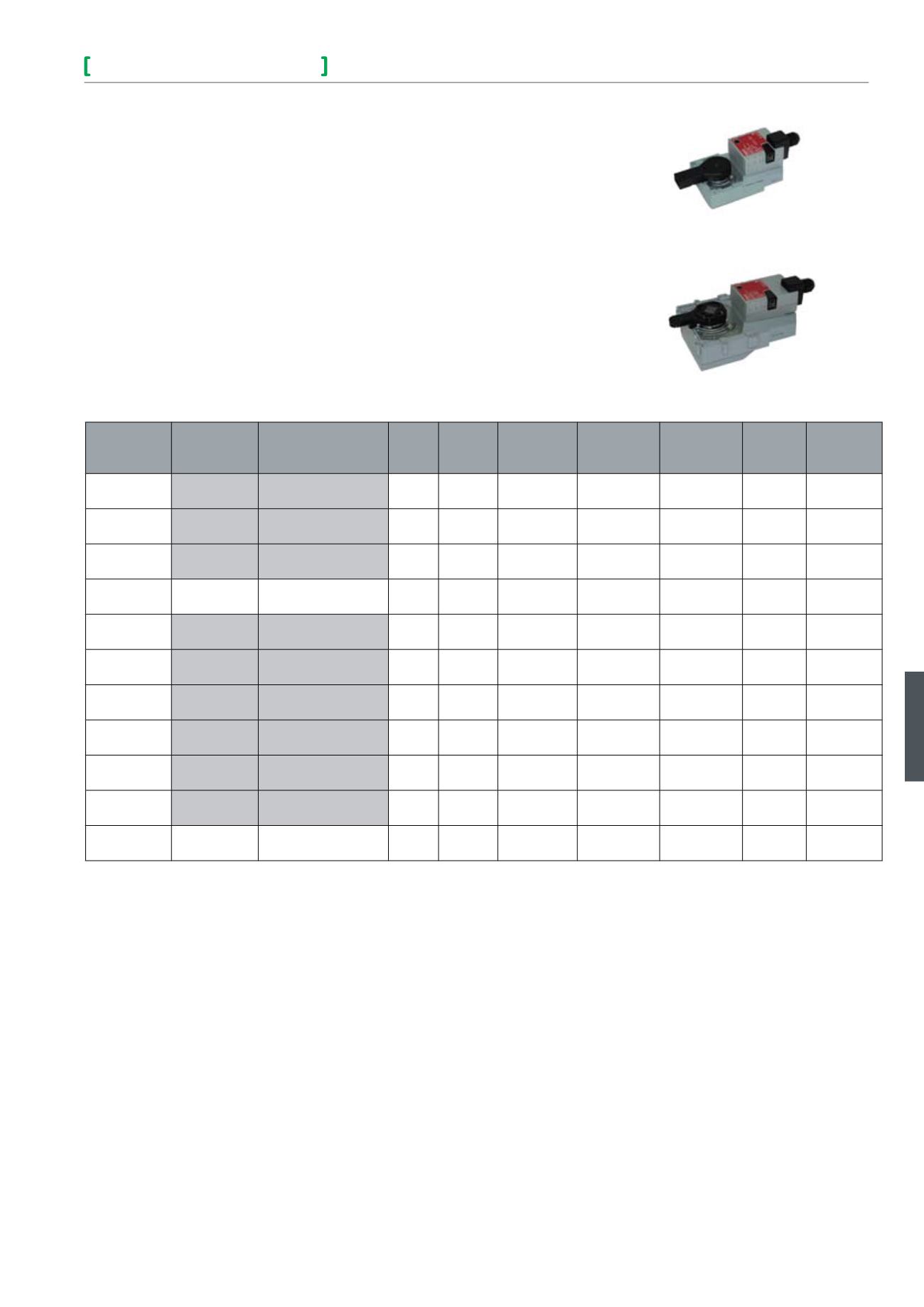

MF20 / MF20-R / MF40
The MF20 and MF40 are robust reliable actuators for the control of the VF208W
butterfly valves. These actuators mount to the VF208W series valves without link-
age kits and connect using terminal blocks to simplify and reduce installation time.
Models for Floating / Modulating / On-Off and LON control •
2-10V Positional feedback for modulating models •
Latching Manual override •
Direct Handlever / position indicator •
Auxillary switch available as an accessory •
Control Part Number Full Type
Designation Torque SupplyVoltage
Power
Consump-
tion (rest)
Power
Consumption
(operation)
Power
Consumption
(wire sizing)
Operating
time, 90º
Suitable
VF208W
valve size
On-Off / 3P MF20-24F MF20-24F T54 00 20Nm 24V AC/DC 0.2W 2.5W 5.5VA 90 sec DN25-100
On-Off / 3P MF20-230F MF20-230F T54 00 20Nm 230V AC 0.4W 3W 7VA 90 sec DN25-100
2-10V MF20-24M MF20-24M T54 00 20Nm 24V AC/DC 0.4W 2.5W 5VA 90 sec DN25-100
LON MF20-24L MF20-24L 1M54 00 20Nm 24V AC/DC 1.25W 3.5W 6VA 90 sec DN25-100
Floating &
On/Off MF20-24F-R MF20-24F-T54 R0 20Nm 24V AC/DC 0.2W 2.5W 5.5VA 90 sec DN25-125
Floating &
On/Off MF20-230F-R MF20-230F-T54 R0 20Nm 230V AC 0.4W 3W 7VA 90 sec DN25-125
0-10V MF20-24M-R MF20-24M T54 R0 20Nm 24V AC/DC 0.4W 2.5W 5VA 90 sec DN25-125
On-Off / 3P MF40-24F MF40-24F T54 00 40Nm 24V AC/DC 2W 4W 6VA 150 sec DN125-200
On-Off / 3P MF40-230F MF40-230F T54 00 40Nm 230V AC 2.5W 5W 9VA 150 sec DN125-200
0-10V MF40-24M MF40-24M T54 00 40Nm 24V AC/DC 2W 4.5W 6.5VA 150 sec DN125-200
LON MF40-24L MF40-24L 1M54 00 40Nm 24V AC/DC 1.5W 4W 7VA 90 sec DN125-200
Accessories: Shaded items are stocked products
MD-S1, 1 x SPDT auxiliary switch, Part No. 914-1060-000
MD-S2, 2 x SPDT auxiliary switch, Part No. 914-1061-000
Handlevers:
Handlevers can be ordered to fit the VF208W butterfly valve. this enables the valve to be used as hand isolation valves.
DN25-65, Part No. :915-0065-000
DN80-100, Part No. :915-0100-000
DN125-200, Part No. : 915-0200-000
N.BMax ∆P Pressure for the valve remains
( Max Valve ∆P is a function of construction, not the actuator)
MF20
MF40
