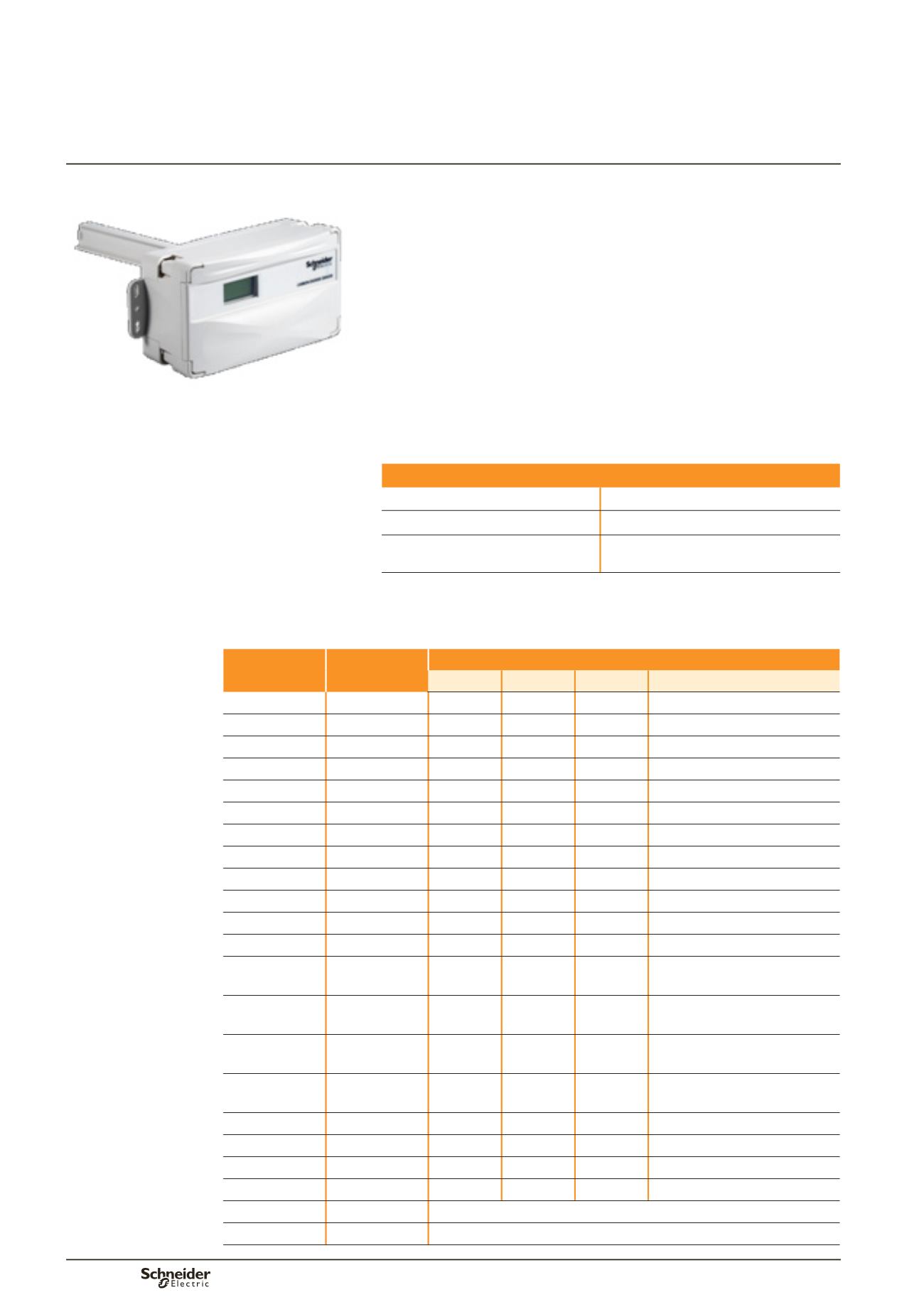

Air Quality
Transmitters
CO
2
Sensors with
Humidity Option
SCD Series
The all new SCD range of CO
2
transmitters with temperature sensing now combines
the option of adding a humidity transmitter into a single unit. Temperature sensing
for all current platforms is available dependent on the model selected thus offering
lower cost installation.
Outputs are user selectable, 0 to 10V, 0 to 5V or 4 to 20mA. The sensor is auto
calibrating using the Auto Baseline Calibration (ABC) feature and will sense CO
2
concentrations in the range 0 to 2000ppm with an accuracy of ±2% of measured value.
The transmitter also include a relay that will switch at 800/1000 or1200ppm
dependent on internal switch settings.
Replacement humidity tips are available including a 2% NIST certificated tip.
If calibration is required, order the standard product and the replacement 2% tip.
Specifications
Input voltage
24VAC, 20 to 36VDC
Analogue output
4 to 20mA, 0 to 5V or 0 to 10V
Current draw
40 to 150mA
(dependent on input voltage)
For full details refer to the data sheet.
Part number
Model number
Duct mounted CO
2
sensor with
Temp
2%RH LCD
System
5152300000 SCD110
X
TAC Vista 1.8K
5152302000 SCD110-D
X
X TAC Vista 1.8K
515230400
0
SCD110 H
X
X
TAC Vista 1.8K
5152306000 SCD110-D-H
X
X
X TAC Vista 1.8K
5152308000 SCD210
X
TAC I/NET 10k T2
5152310000 SCD210-D
X
X TAC I/NET 10k T2
5152312000 SCD210 H
X
X
TAC I/NET 10k T2
5152314000 SCD210-D-H
X
X
X TAC I/NET 10k T2
5152316000 SCD510
X
Andover Continuum 10K T3
5152318000 SCD510-D
X
X Andover Continuum 10K T3
5152329000 SCD510 H
X
X
Andover Continuum 10K T3
5152322000 SCD510-D-H
X
X
X Andover Continuum 10K T3
5152324000 SCD610
X
Satchwell 10K
T3 Resistor/Shunt
5152326000 SCD610-D
X
X Satchwell 10K
T3 Resistor/Shunt
5152328000 SCD610 H
X
X
Satchwell 10K
T3 Resistor/Shunt
5152330000 SCD610-D-H
X
X
X Satchwell 10K
T3 Resistor/Shunt
5152332000 SCD810
X
I/A 10K T3 w/Shun
t
5152334000 SCD810-D
X
X I/A 10K T3 w/Shunt
5152336000 SCD810 H
X
X
I/A 10K T3 w/Shunt
5152338000 SCD810-D-H
X
X
X I/A 10K T3 w/Shunt
5152339010 HS2NX
Replaceable RH Element, 2%, NIST
5152339000 HS2XX
Replaceable RH Element, 2%
Available products
